This S-Band radar system meets type approval standards for use aboard CAT 1 SOLAS vessels. Reliably detect targets in poor weather conditions with a 12-foot open array and 30 kilowatt up-mast transceiver. A modern and intuitive interface offers ease of use, while a modular design enables simple yet flexible installation.
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 94
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 95
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 96
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 97

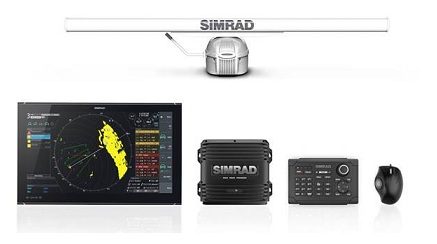

R5024 30U/12S-R5027 30U/12S
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/inc/shortcodes/share_follow.php on line 23
Features
- S-Band radar offers superior target detection to X-Band in harsh weather conditions
- Lightweight 12-foot open array antenna with 30 kW up-mast transceiver
- Modern user interface with intuitive keypad and trackball controls
- Modular system for ease of installation
- Create multi-radar and multi-station systems
Specifications
- Video : 1 x DVI-D Output to M5000 Monitor, 1 x DVI-D Output to VDR
- NMEA 2000 Connectivity : 1 x NMEA 2000 Micro-C port, for O2000 Remote Controller only
- Beam width : 1.9 x 24
- Min Range, scale : 1/8 NM
- Recommended Fuse Rating : 10 Amp
- Max Wind Speed : 100 kts at 20 RPM
- Supply Voltage : 110/230 VAC, 50/60 Hz (+/- 10%)
- Display Resolution : 1920 x 1080
- Dimensions Diameter : 371 cm Swing Circle (146.1″)
Series
Display |
|
R5024 30U/12S CAT 2 Radar |
24-inch |
R5027 30U/12S CAT 1 Radar |
27-inch |
