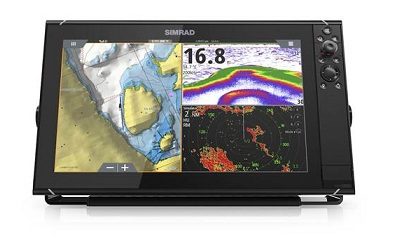

This high-definition display delivers a big-picture view of high-detail, C-MAP US Enhanced inland and coastal charts, Radar, Active Imaging Sonar, and more. Perfect for larger powerboats and sportfishing center consoles, NSS evo3 has integrated wireless connectivity and an HDMI out, allowing you to mirror your display to your smartphone, tablet, or an on-board TV.
Features
- SolarMAX IPS HD display with extreme viewing angles; viewable through polarized sunglasses
- Preloaded, high-detail C-MAP US Enhanced inland and coastal charts
- Full operation via touchscreen or keypad controls
- Touchscreen control of sonar, radar, autopilot and accessories
- Industry-standard connectivity to engines, sound systems and more
- Automatic routing support, plus easy trip planning with TripIntel
- Flexible installation with low-profile flush mount or bracket mount options
Specifications
- NMEA 2000 Connectivity : 1 x NMEA 2000 Micro-C port, 1 LEN
- Supply Voltage : 10 – 31.2 V DC
- Update rate : 10 Hz
- Operating Temperature Range : -15°C to +55°C (5° F to 131° F)
- Internal Storage : 16 GB
- SD Card Storage : 2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS
- Warranty Period : 2 Years
- GPS Receiver Channels : 34 Channels
Series
Weight |
Power |
Fuse Rating |
|
NSS7 |
1.1 kg (2.42 lbs.) |
20 W |
3A |
NSS9 |
1.41 kg (3.11 lbs.) |
23 W |
3A |
NSS12 |
3.1 kg (6.83lbs.) |
30 W |
5A |
NSS16 |
4.65 kg (10.25lbs.) |
45 W |
5A |
