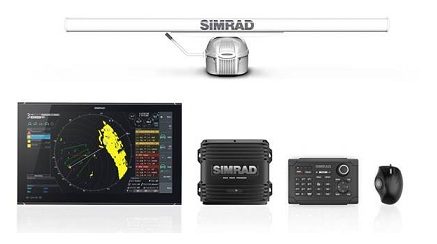

This X-Band radar system meets type approval standards for use aboard CAT 2 SOLAS vessels. Accurately detect, differentiate, and track targets with a 6-foot open array and 25 kilowatt up-mast transceiver. A modern interface and intuitive controls offer ease of use, while a modular design enables simple and flexible installation.
Features
- X-Band radar offers high resolution and optimal target separation
- Meets type-approval standards for use aboard CAT 2 (H) SOLAS vessels
- Modern user interface with intuitive keypad and trackball controls
- Modular system for ease of installation
- Create multi-radar and multi-station systems
Specifications
- Video : 1 x DVI-D Output to M5000 Monitor, 1 x DVI-D Output to VDR
- NMEA 2000 Connectivity : 1 x NMEA 2000 Micro-C port, for O2000 Remote Controller only
- Min Range, scale : 1/8 NM
- Recommended Fuse Rating : 10 Amp
- Max Wind Speed : 100 kts at 20 RPM
- Supply Voltage : 110/230 VAC, 50/60 Hz (+/- 10%)
- Operating Temperature Range : -15°C to 55°C for protected units, -25°C to 55°C for exposed units.
- Backlight Color : 16.7 million colours
- Viewing Angles : 160 degrees
- Display Resolution : 1920 x 1080
- Warranty Period : 2 Years
- Rotation speed : 22/44 RPM
- Screen Brightness : 300 nit
Series
Model |
Antenna |
display |
Power |
Beam width |
R5027 25U/6X CAT 1 Radar |
6-foot open array |
27-inch |
25 kW |
0.9 x 22 |
R5027 25U/9X CAT 1 Radar |
9-foot open array |
27-inch |
25 kW |
0.9 x 22 |
R5024 25U/6X CAT 2 Radar |
6-foot open array |
24-inch |
25 kW |
1.3 x 22 |
R5024 12U/6X CAT 2 Radar |
6-foot open array |
24-inch |
12 kW |
1.3 x 22 |
Brochures/Product Link
R5027 25U/6X CAT 1 Radar
R5027 25U/9X CAT 1 Radar
R5024 25U/6X CAT 2 Radar
R5024 12U/6X CAT 2 Radar
