Complete & flexible ECDIS platform; The Danelec ECDIS range is Wheelmark approved by DNV GL, and complies with all applicable IMO requirements defined in MSC.232(82), as well as the revised IEC and IHO performance standards mandatory for all new and existing ECDIS installations by August 2017.
Features
- A New Era of Navigation
- Unique SWAP technology
- Additional overlay support
- 10 years service guarantee
- Linux stability and security
- Intuitive use and interface
- Industry-leading Chart Solutions
Specifications

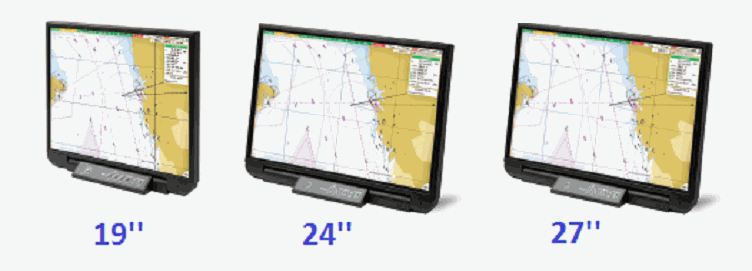

- Display: Monitor 19″ or Monitor 24” or Monitor 27” ( widescreen )
- Basic or Advanced Keyboard / Trackball

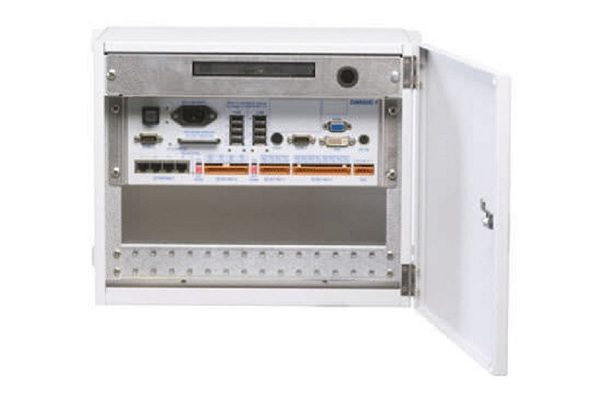

- Linux based ECDIS computer with 32 GB SSD (expandable up to 512GB)
- 12 serial channels (10 x IEC 61162-1, 2 x IEC 61162-2)
- 4 Ethernet ports (100BASE-TX, RJ45)
- 8 USB ports (USB 2.0)
- AC power (110-230V, 50-60Hz)
- Supplied with ECDIS Alarm Panel and USB Hardware Key
- Built in DVD drive
- ECDIS Console as an option
- Uninterruptible Power Supply as an option
Brochures/Product Link
ECDIS DM-800
