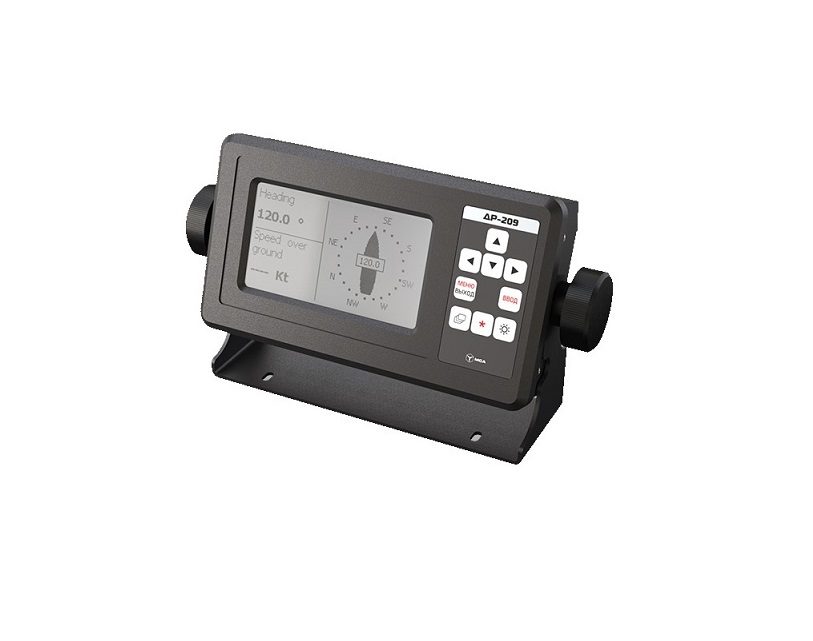

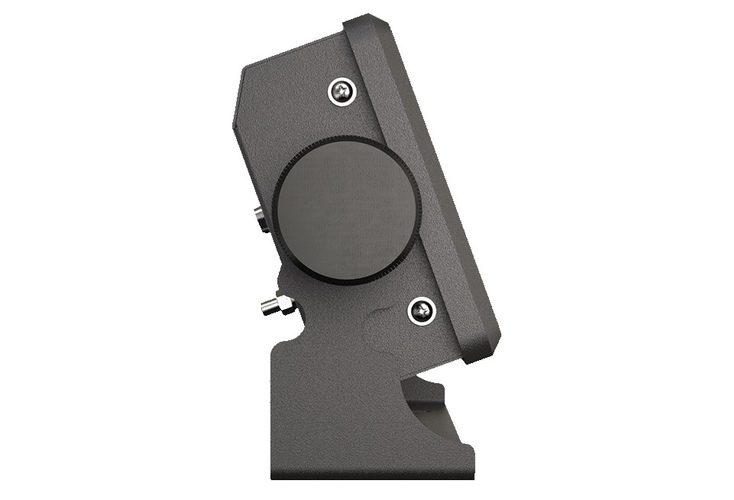

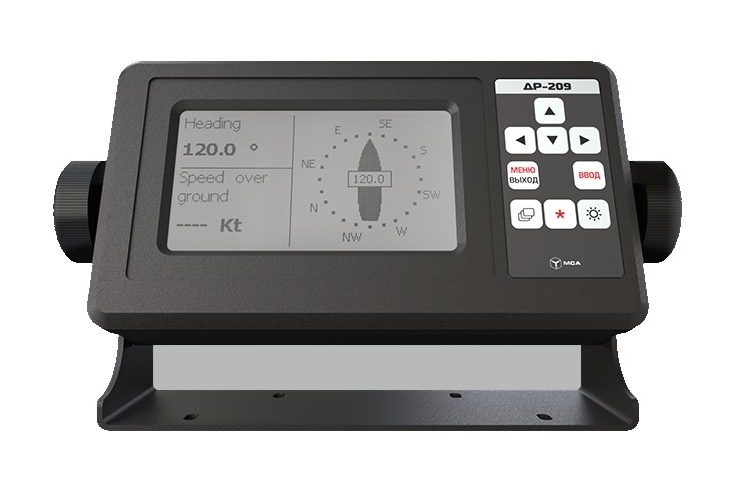

The DR-209 multipurpose digital repeater displays NMEA-sentences data from various ship equipment on a monochrome LCD monitor in user-friendly format and rebroadcasts the received data by communication channels.
Specifications
- Power supply voltage : 10…36 V DC
- Max power consumption : 12 W
- Overall dimensions (with a bracket) : 211x117x63.5 mm (255×143.5×71 mm)
- IP rating : IP 22 (optionally IP 65)
- Storage temperature : -55…+70 °С
- Operating temperature : -20…+55 °С
- Weight : 2 kg
- Number of inputs : 2
- Interface : RS-422
- Max baud rate : 57600 bit/s
