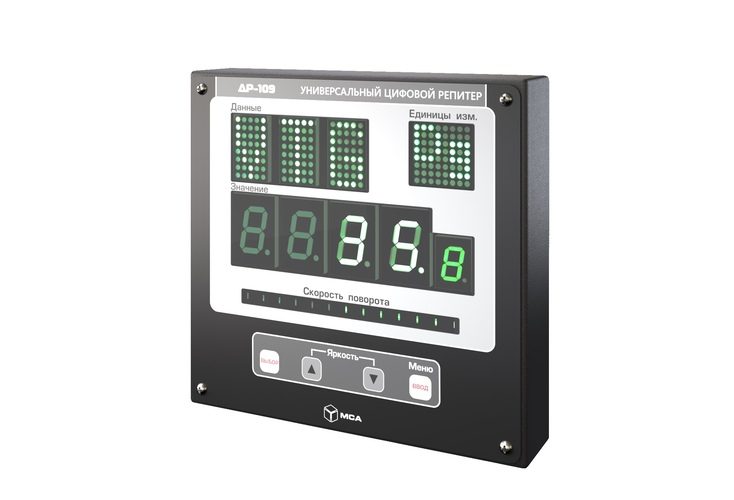

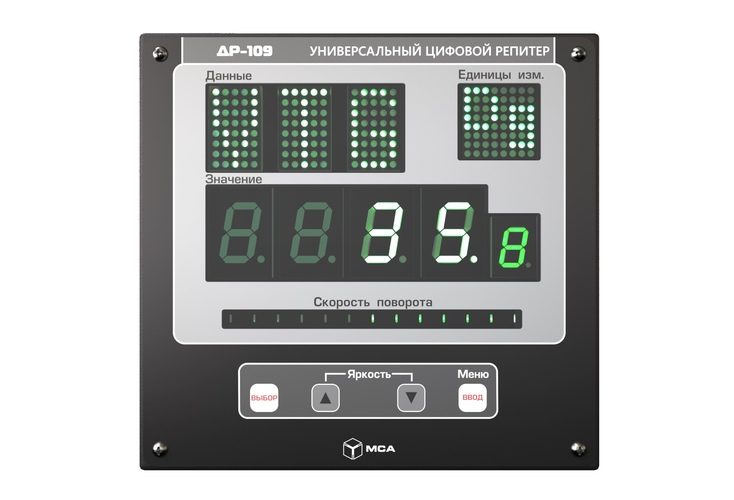

The DR-109 multipurpose digital repeater allows the visual indication of digital data received in NMEA 0183 sentences through RS-232 and RS-422/485 serial interfaces. The DR-109 provides sequential displaying of up to 3 data types on the built-in LED indicator (ship speed and heading, depth below keel, current time and weather conditions). The data of ship turn rate may be displayed regardless of main data on the built-in LED linear.
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 94
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 95
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 96
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 97
Specifications
- Limiting temperature : –60°С …+70°С
- Type of indicator : led
- Casing material : metal
- Keyboard material (keys) : membrane (bulge)
- Power supply voltage : 24 (9,6…36,0) VDC
- Power consumption : 5 W
- Number of ports : 1 × RS-232 galvanically isolated (input and output port);
1 × RS-422 galvanically isolated (input port);
1 × RS-422 galvanically isolated (output port)
- Data baud rate (reception / transmission) : 4800; 9600; 19200; 28800; 38400; 56000; 57600; bit/s
- Output data format : NMEA 0183 (input retransmission)
Series
| DR-109 | DR-109W | |
| Dimensions | · mounting into console – 200,1 х 25,6 х 190,1 mm
· wall mounting – 206,2 х 45,7 х 229,2 mm · mounting on a bracket – 206,2 х 132,0 х 190,0 mm |
|
| IP rating | IP22 | IP56 |
| Operating temperature | –15°С …+55°С | –40°С …+55°С |
| Weight | · mounting into console – 0,58 kg
· wall mounting – 1,40 kg · mounting on a bracket – 1,63 kg |
|
Brochures/Product Link
DR-109
