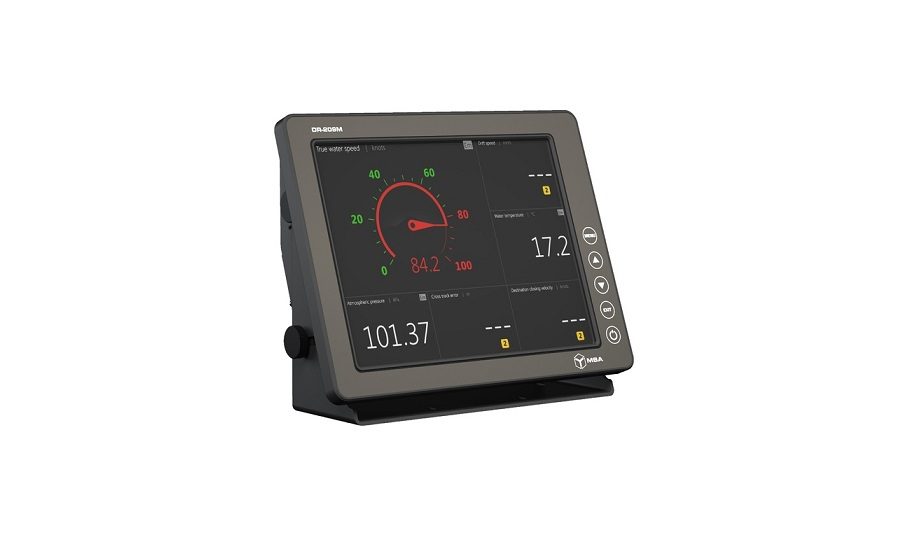

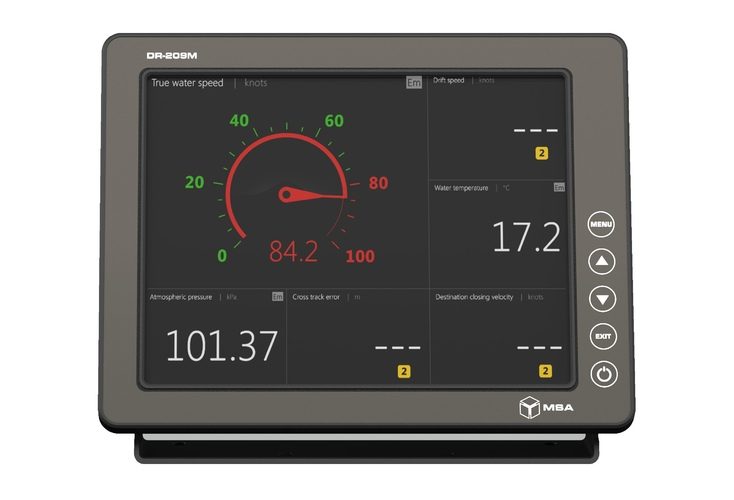

The DR-209M multipurpose digital repeater displays NMEA-sentence data from various ship equipment on an 8 inch colour LCD monitor in user-friendly and convenient format. It rebroadcasts the obtained data by communication channels. The device is equipped with a touch screen and 12/24V output to supply connected equipment.
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 94
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 95
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 96
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 97
Specifications
- Power supply voltage : 10…36 V DC
- Max power consumption : 20 W
- IP rating : IP 22
- Dimensions : 208×160×60 mm
- Dimensions with a bracket : 208×165×87 mm
- Operating temperature : – 20 °С .. + 55 °С
- Storage temperature : -55…+70 °С
- Weight : 4 kg
- Display : LCD, 8”, 1024 × 768
(XGA, 4:3, 350 cd/m²) - Viewing angle : 170º
- Built-in memory : 2 GB (SD Card EMMC)
- RAM : 512 МB
Brochures/Product Link
DR-209M
