Heading Repeater Compass for professional applications
Features
- A large easy to read 150mm dia card with 1° graduation
- Back-lit illumination for night use
- Capable of connecting to a variety of heading reference transmitting sources
Gyro compass, GPS antenna compass, TMC systems, Auto pilots, etc. - Unlimited number of repeater connections
- Heading data output facility
- Available in two different mouting styles; panel (NRC-150P) or bracket mounting (NRC-150)
Specifications
- Power source : 13.8 (12) – 30VDC
- Current drain : 200mA nominal, 400mA max
- Input signals : Serial data NMEA 0183 HDT and HDM Sine/cosine analogue sensor input
- Output signals : Serial data NMEA 0183 HDM Sine/cosine analogue output
- Output interval : Serial data in every 50mS (250mS) Analogue signal continuous
- Accuracy : Average within 1 deg, max ±2 deg
- Card diameter : 150mm
- Operating temperature : -10 deg to 50 deg C
- Weight : 1.3 kg
Series
| Model | External form | Mounting | Dimmer control | Dimension |

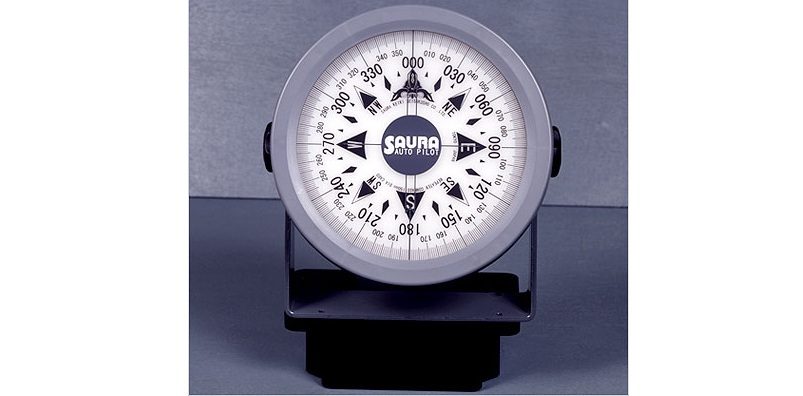

| NRC-150 | Round verge ring type | Bracket foot or panel mount | fitted on the rear | 213mm x 202mm x D 80mm |
| NRC-150P | Square bezel type | Panel mount | fitted on the instrument front bezel | 200mm x 200mm x D 80mm |
