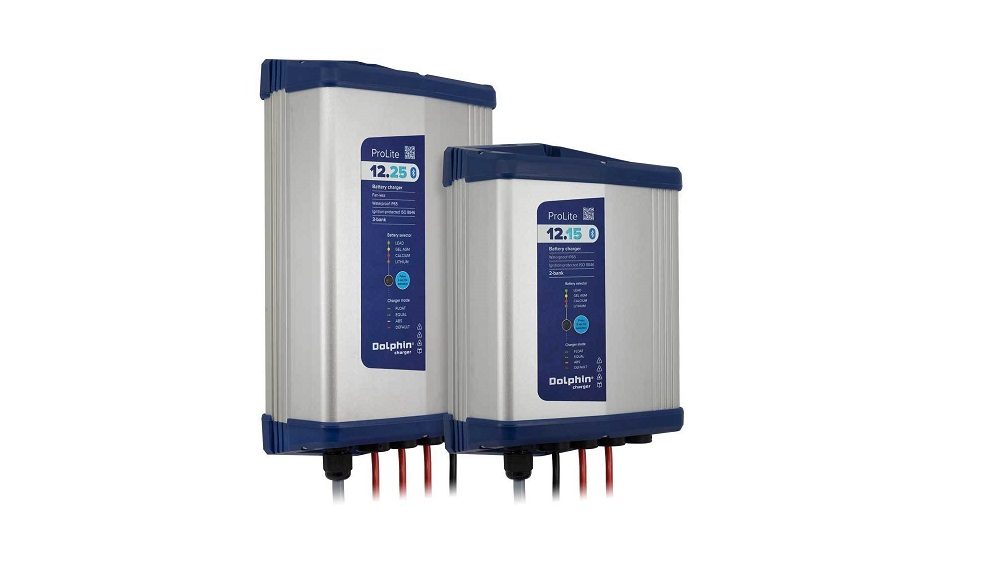

Dolphin charger introduces PROLITE, a brand-new series of supercompact, fan-less, water-resistant (IP65) and ignition-protected (ISO 8846) Bluetooth power units, with “Dolphin Connect” App. With a power range extending from 15A to 25A, PROLITE is your perfect choice for sailboats, center console boats, sport fishing boats and other pleasure craft. Just Plug, Play and Enjoy.
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 94
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 95
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 96
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 97
Features
- This series is smart (featuring Bluetooth interface and the new “Dolphin Connect” App), efficient, compact, fan-less/silent, ignition-protected (ISO 8846) as well as water-resistant (IP65). Oh… and it comes with a 2-year-warranty.
Specifications
- Frequency : 50/60 hz (+/-10%)
- Efficiency : > 90%
- Operating t° : -10°C to +55°C (automatic derating)
- Storage t° : -20°C to +70°C
- Humidity : 10% to 90%
- IP Rating : IP65
Series
| Input voltage | Max. Current 115V/230V | Number of output | Dimensions | Weight | |
| 12V/15A | 115V (+/-10%) | 4A | 2 | 142 x 72 x 194mm
5,59 x 2,83 x 7,64” |
1,4 Kg / 3.1 lbs |
| 12V/15A | 230V (+/-10%) | 2A | 2 | 142 x 72 x 194mm
5,59 x 2,83 x 7,64” |
1,4 Kg / 3.1 lbs |
| 12V/25A | 115/230V (+/-10%) | 4A/2A | 3 | 142 x 72 x 244mm
5,59 x 2,83 x 9,61” |
1,7 Kg / 3.8 lbs |
Brochures/Product Link
PROLITE Series
