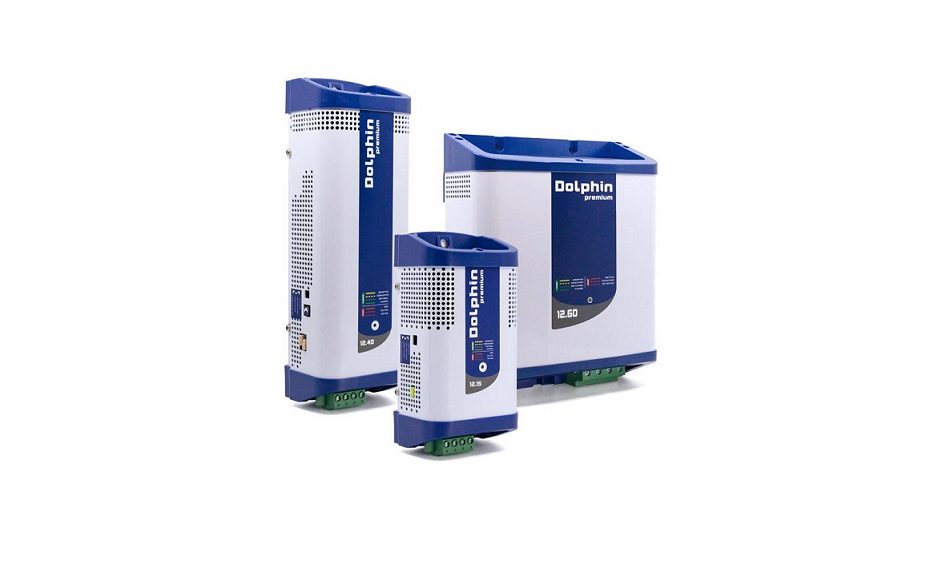

AC/DC Battery Chargers from 10A to 60A. Over 75000 units sold worldwide. The perfect choice for sailboats and other pleasure craft for all coastal yachting activities. Safe, robust and efficient. Just Plug and Play.
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 94
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 95
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 96
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 97
Features
- Microprocessor controlled for multi-stage charging technology
- Can charge 4 different battery technologies including LFP (lithium iron phosphate)
- Automatic weekly battery equalisation for longer battery life
- Full power till 50°C without any derating
- Safe AC and DC connectors for fast and reliable installation
- Wide AC input voltage range 115/230V, 50/60Hz automatic (Except 10A and 15A)
- Night mode (silent with fan disconnected) on 25A and 40A
- 4 Years warranty
Specifications
- Frequency : 50/60 hz
- Operating t° : -10°C to +55°C
- Storage t° : -20°C to +65°C
- Humidity : 10% to 95% (without condesation)
- IP Rating : IP20
Series
| Input voltage | Efficiency | Max. Current 115V/230V | Max. Amp | Dimensions D x W x H (mm) | Weight | |
| 10A | 230V (+/-15%) 115V on request | 83% | 1,3A | 10A | 96 x 120 x 238 | 1,3 Kg |
| 15A | 230V (+/-15%) 115V on request | 83% | 1,9A | 15A | 96 x 120 x 238 | 1,3 Kg |
| 25A | 115/230V (+/-15%) | 87% | 4A/2A | 25A | 96 x 120 x 354 | 1,9 Kg |
| 40A | 115/230V (+/-15%) | 87% | 7A/3,5A | 40A | 96 x 120 x 354 | 1,9 Kg |
| 60A | 115/230V (+/-15%) | 87% | 10A/20A | 60A | 115 x 240 x 284 | 3,1 Kg |
| 20A | 115/230V (+/-15%) | 87% | 7A/3,5A | 20A | 96 x 120 x 354 | 1,9 Kg |
| 30A | 115/230V (+/-15%) | 87% | 10A/20A | 30A | 115 x 240 x 284 | 3,1 Kg |
