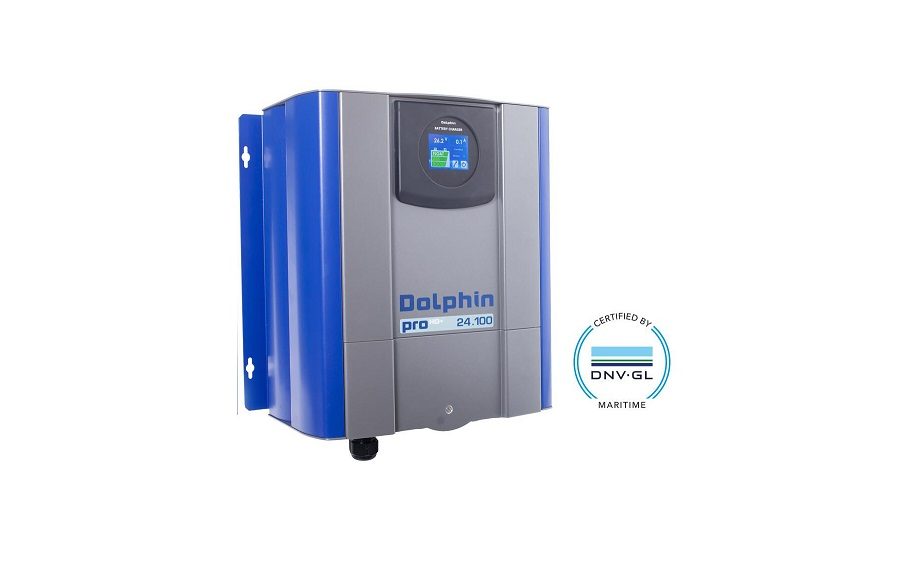

PRO HD+ is our range of DNV-GL Marine Type Approved AC/DC Battery charger from 40A to 100A. They are the absolute expert solution for commercial, heavy duty, navy and offshore purposes.
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 94
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 95
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 96
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 97
Features
- This Series of 24V marine chargers has been designed for commercial and offshore clients
- PRO HD+ is simply the best a pro can get.
- These chargers are available in three versions: 40A (115/230V), 60A (115/230V) and 100A (230V).
- PRO HD+ Chargers can of course interface with any modern onboard system: they are smart, “open” devices with standard CANbus J1939 technology. They are also NMEA-Ready: NMEA2000 option is available from one unit.
- This tactile Human-Machine-Interface (HMI) display allows you to easily supervise both your charger and battery bank in terms of charging current, selected charging curve, charging phase (boost/absorption/float), power max delivered at any given moment.
Specifications
- Frequency : 50/60 hz
- Efficiency : 87%
- Number of output : 3 isolated (Full power)
- Operating t° : -10°C to +55°C (Full power till +50°C)
- Storage t° : -20°C to +65°C
- Humidity : 10% to 95% (without condesation)
- IP Rating : IP22
Series
| Input voltage | Max. Current 115V/230V | Max. Amp | Fuse (auto mini) | Dimensions D x W x H | Weight | |
| 24V/40A | 115/230V (+/-15%) | 14A/6A | 40A | 4F30A | 128 x 346 x 358 mm | 6 Kg |
| 24V/60A | 115/230V (+/-15%) | 15A/9A | 60A | 3F25A | 128 x 346 x 358 mm | 6 Kg |
| 24V/100A | 230V (+/-15%) | 17A | 100A | 5F30A | 196 x 346 x 358 mm | 11,5 Kg |
Brochure/Product Link
PRO HD+ Series
