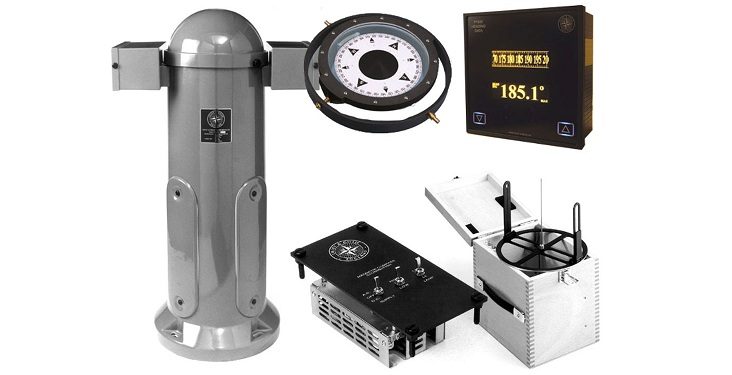

Mk2000S

For commercial vessels over 150GRT, fishing vessels over 35m and naval vessels with or without DG correction Suitable for use with Lilley & Gillie (and other) Transmitting Magnetic Compass (TMC) equipment to operate repeaters, off-course alarms and outputs to navigation equipment including gyro back up

Features

Reduced shipyard installation work
Improved watertightness around deck/periscope area
Simple periscope assembly installation and removal
Low weight
Low voltage lighting within the binnacle
Mounting arrangements for various TMC sensors

Specifications

Material : Reinforced glassfibre binnacle
Correction : A full set of compensating magnets for B, C and H plus adequate quadrantal corrector and flinders plates.
Periscope : Telescopic with a maximum vertical length of two
metres.
Lighting : Two 24vdc 15w lamps and one spare fitted within the binnacle. Control of lamps, dimmer and power supply by the FW9862 Control Unit. A two position dimmer switch is also fitted within the binnacle for local control.
Power Supplies : The FW9862 Control Unit includes a transformer
and has AC mains (110 or 220v) and 24vdc inputs
with 24vdc outputs.
Weights :
