Complete & flexible ECDIS platform; The Danelec ECDIS range is Wheelmark approved by DNV GL, and complies with all applicable IMO requirements defined in MSC.232(82), as well as the revised IEC and IHO performance standards mandatory for all new and existing ECDIS installations by August 2017.
Features
- A New Era of Navigation
- Unique SWAP technology
- Additional overlay support
- 10 years service guarantee
- Linux stability and security
- Intuitive use and interface
- Industry-leading Chart Solutions
Specifications

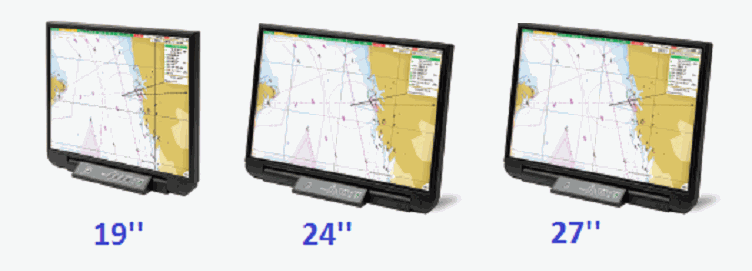

- Display: Monitor 19″ or Monitor 24” or Monitor 27” ( widescreen )
- Basic or Advanced Keyboard / Trackball

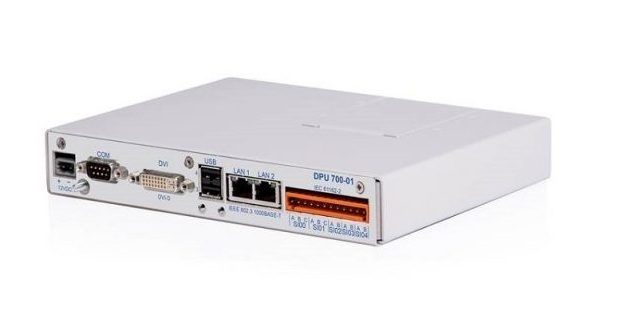

- Linux based ECDIS computer with 64 GB SSD (expandable up to 256GB)
- 5 serial channels (5 x IEC 61162-2)
- 2 Ethernet ports (1000BASE-T, RJ45)
- 4 USB ports (1 x USB 3.0, 2 x USB 2.0, 1 x internal USB 2.0 for USB Hardware Key)
- Powered from monitor
- Supplied with USB Hardware Key
- ECDIS Console as an option
- Uninterruptible Power Supply as an option
Brochures/Product Link
ECDIS DM-700
