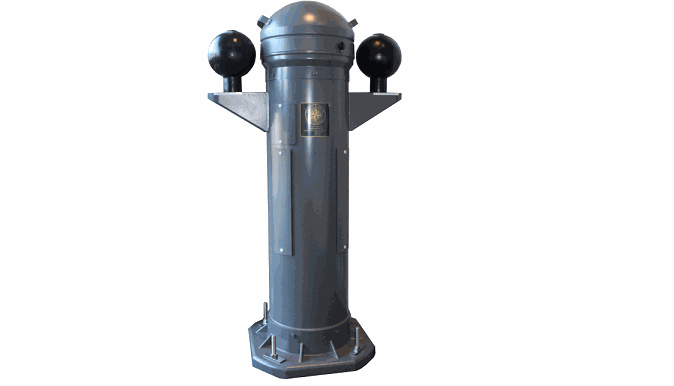

For commercial vessels over 150GRT, fishing vessels over 35m and naval vessels with or without DG correction Suitable for use with Lilley & Gillie (and other) Transmitting Magnetic Compass (TMC) equipment to operate repeaters, off-course alarms and outputs to navigation equipment including gyro back up
Features
- Reduced shipyard installation work
- Improved watertightness around deck/periscope area
- Simple periscope assembly installation and removal
- Low weight
- Low voltage lighting within the binnacle
- Mounting arrangements for various TMC sensor
Specifications
- Material : Aluminium binnacle.
- Periscope : Telescopic with a maximum vertical length
of two metres. - Fixings : Four S/S M16x70 mounting bolts, nuts
and washers. - Lighting : Two 24vdc 15w lamps and one spare fitted within the binnacle. Control of lamps, dimmer and power supply by the FW9862 Control Unit. A two position dimmer switch is also fitted within the binnacle for local control.
- Weights :
-Reflector Binnacle 71kg
‘-SR4’ Compass 6.5kg
-Lighting Control Unit 0.62kg
-Azimuth in box 1.45kg
Brochures/Product Link
Mk2020S
