Always, the need for connection exists in everywhere even on the middle of the sea.

This compact and light-weight antenna system would provide high quality and reliable network connection and/or satellite television to professional fishers and leisure yachtsman.

Features

Built in GPS
High Gain Reflector
Pre-Programmed Satellite Database
Accurate Signal Acquisition by KNS’s
High Performance Stabilization in Rough Weather
Automatic Satellite Search & Skew Control

Specifications

Radome Material : Plastic
LNB : Universal LNB
Skew Control : -135˚ to +135˚
Elevation Angle : +10˚ to +115˚
Azimuth Range : 690˚
Cross Angle : Tilt Angle: -20˚ to +20˚
Tracking Speed : More than 90˚/sec
Input Power : 100~240V AC, 50~60Hz

Series

	Dish Diameter	Antenna Dimension	Weight	Antenna Gain

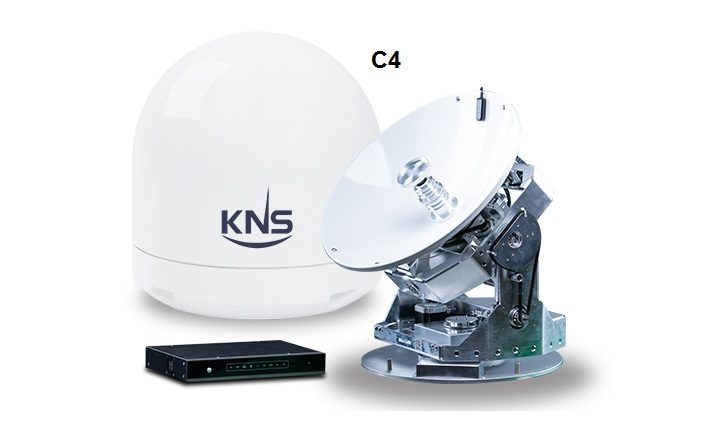

C4	45cm (18in)	58cm(D) x 63.cm(H)	27 Kg	TX : 34.38 dBi @ 14.25 GHz RX : 33.11 dBi @ 11.75 GHz

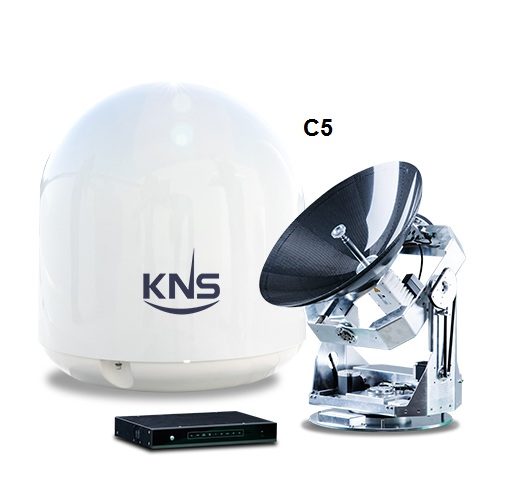

C5	55cm(22in)	76cm{D} x 80cm{H}	35kg	TX : 42.7 dBi @ 29.75 GHz RX : 39.5 dBi @ 19.95 GHz
