Categories: Fishing Vessels, Merchant/Sea Going Vessels, Pleasure Yachts, Satellite Communication, Work boats Product Brand: KNS

Description
Features
Specifications
Series
Brochures/Product Link

The art KNS 3 axis servo stabilization system and the built-in GPS, The S-Series outperforms all other TVRO systems in the market today.

Larger S-Series antennas providing stronger signal acquisitions are available for more efficient performance in any condition.

Features

True 3 Axis
CE (EN60945) Satisfied
Pre-programmed Satellite Database
Automatic Satellite Search & Skew Control
Accurate Signal Acquisition by KNS’s Distinctive Algorithm
Antenna Control Unit

Specifications

Radome Material : FRP
Frequency : 10.7 ~ 12.75 GHz
G/T : N/A
Operating Platform : 3 – Axis
LNB : Quad / Quattro LNB(optional)
Skew Control : Automatic

Series

	Dish Diameter	Antenna Dimension	Weight	Antenna Gain
S4 – Ku	45cm(18in)	67cm(D) x 69cm(H)	25 Kg	48 dBW
S6 – Ku	61cm(24in)	85cm(D) x 84cm(H)	38 Kg	46dBW
S8 – Ku	83cm(33in)	113cm(D) x 117cm(H)	57 Kg	44dBW
S12 – Ku	100cm(40in)	144cm(D) x 152cm(H)	90 Kg	43 dBW

Brochures/Product Link

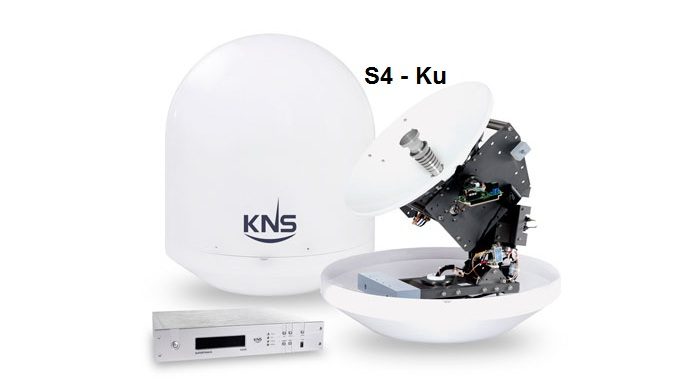

S4 – Ku

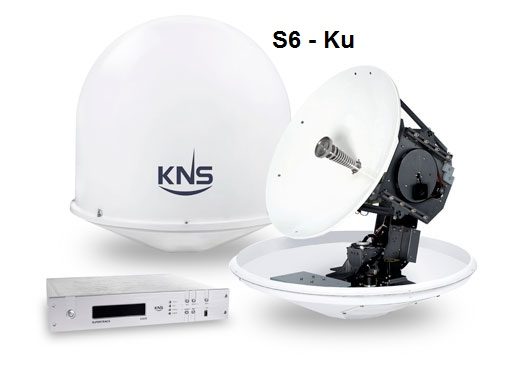

S6 – Ku

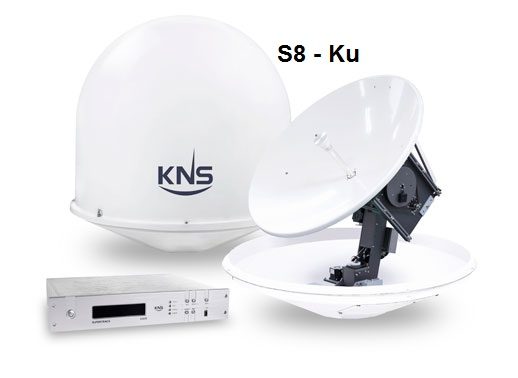

S8 – Ku

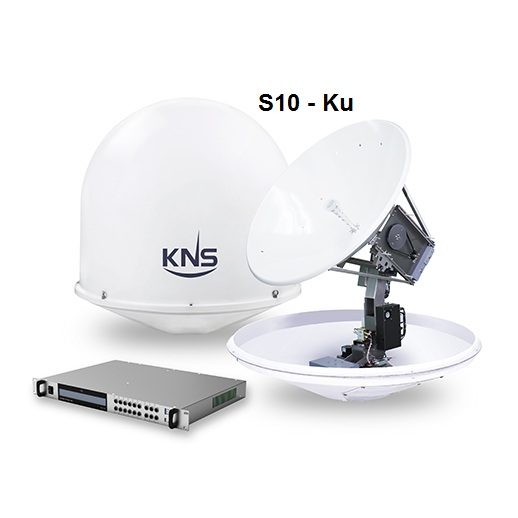

S10 – Ku

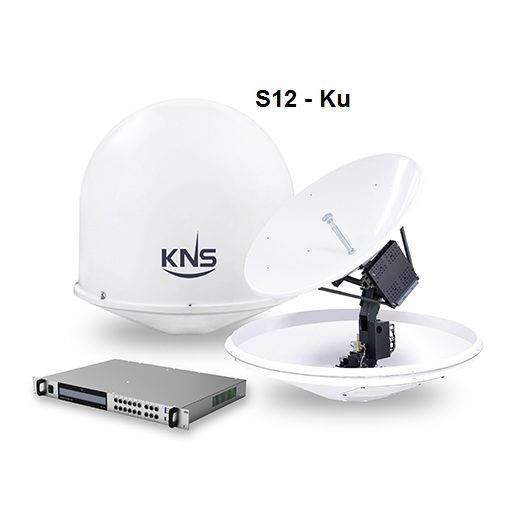

S12 – Ku
