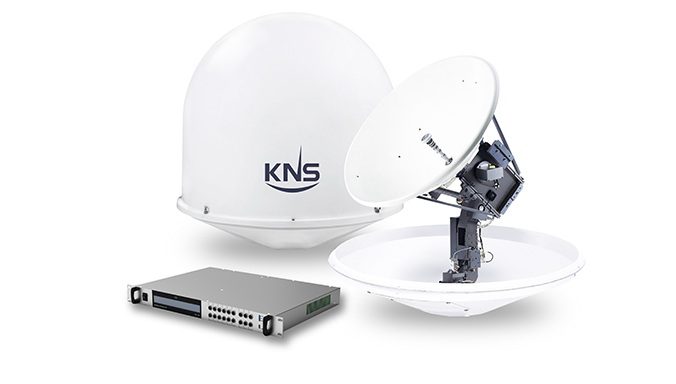

The SuperTrack A-Series service package enables maritime customers to not only benefit from an ”always on” internet connection and VolP services but also to cut down on the high cost equipment and services. The SuperTrack A-Series supports various applications including internet access, email, data transfer, web surfing, VolP VPN security, etc. The A-Series is suitable for merchant vessels, fishing and offshore vessels, luxury yachts, leisure boats and more.
Features
- Always-on connectivity for broadband and VolP
- Flat monthly rate
- High performing in motion matitime antenna
- Brake System
- European Coverage
- First Class Distribution network
- CE R&TTE Certified
Specifications
- Radome Material : FRP
- Operating Platform : 3 – Axis
- LNB : LNB : Linear / Internal PLL
Gain : 60dB - Skew Control : Automatic
- Cross Angle : ± 35˚
- Temperature : -20˚C to +55˚C
- Tracking Speed : More than 90˚/sec
- Temperature : -20˚C to +55˚C
- Gyro Interface : NMEA 0183
Series
| Dish Diameter | Antenna Dimension | Weight | Antenna Gain | |
A6 – Ku
|
61cm(24in) | 85cm(D) x 84cm(H) | 38 Kg | TX : 36.4 dBi @ 14.25 GHz RX : 35.1 dBi @ 11.75 GHz |
A9 – Ku
|
85cm(33in) | 113cm(D) x 117cm(H) | 57 Kg | TX : 38.3 dBi @ 14.25 GHz RX : 38 dBi @ 11.75 GHz |
A10 – Ku
|
100cm(40in) | 144cm(D) x 152cm(H) | 90 Kg | TX : 41 dBi @ 14.25 GHz RX : 40 dBi @ 11.75 GHz |
A12 – Ku
|
120cm(49in) | 161cm(D) x 163cm(H) | 105 kg | TX : 42.87 dBi @ 14.25 GHz RX : 40.95 dBi @ 11.75 GHz |
