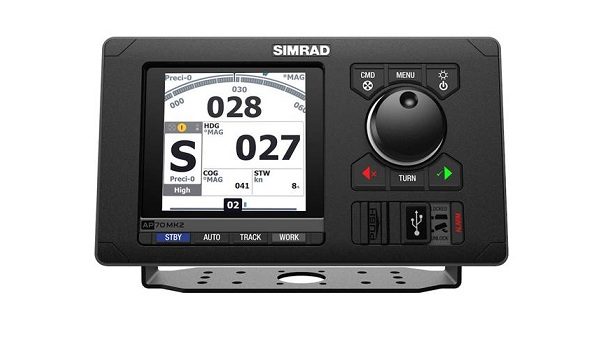

AP70 Mk2 Autopilot Controller

Categories: Autopilot, Merchant/Sea Going Vessels, Pleasure Yachts, Work boats Product Brand: Simrad

Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/inc/shortcodes/share_follow.php on line 23

Description
Features
Specifications
Brochures/Product Link

The AP70 Mk2 is a dedicated autopilot controller designed to meet the needs of professional mariners aboard a variety of commercial vessels.

Replacing both the AP70 and AP80 as our IMO/SOLAS autopilot controller, the AP70 Mk2 retains much of the well-reputed platform of its predecessors, but with a brilliant new display and modernised software interface.

Features

Wheelmarked for use on board SOLAS vessels (IMO, MED-B)
Advanced configuration and tuning options to suit all ships
Compatible with all common rudder/drive types
Up to 6 rudders/thrusters integration
Heavy-duty rudder feedback support
Configurable work modes and low/high speed modes
No Drift steering holds course against wind and tide
Navigation steering, route following
Command transfer and multiple control stations support

Specifications

Compass Safe : 0,4m (15,75″)
Power Consumption typical : 0,7/0,4 A at 12V DC, 0,4/0,3 A at 24 V DC backlight full/off
Power Consumption max : 0.7A at 12V, 0.4A at 24V
Weight : 1,4 kg (3,1 lbs)
Supply Voltage : 12/24VDC +30 -10%
Viewing Angles : 170° viewing angle
Warranty Period : 2 years
Dimensions W x H x D : 253 x 144 x 54mm (9,92 x 5,67 x 2,13 “)

AP70 Mk2 Autopilot Controller

Features

Specifications

Brochures/Product Link

AP70 Mk2
