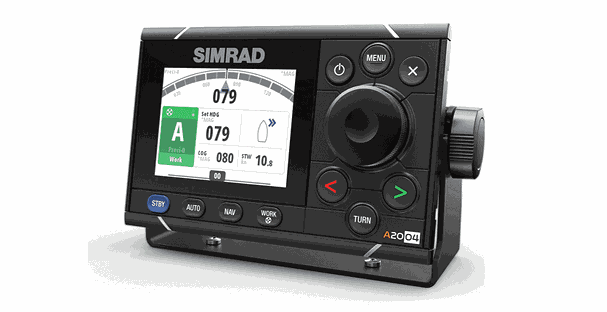

The A2004 is a dedicated autopilot controller designed to meet the needs of professional mariners aboard a variety of commercial vessels. It features a proven Simrad interface, presented on a wide-angle and zero-fog colour display.
Features
- Proven Simrad interface designed for commercial marine applications
- Large, heavy-duty rotary control dial for precision steering
- Continuum steering technology
- Optically bonded 4.1-inch colour display with 170° viewing angle
- Thruster integration & heavy-duty rudder feedback support
- Configurable work mode and low/high speed modes
- Automated turn patterns for fuel-efficient, hands-free manoeuvres
- No Drift steering holds course against wind and tide
- Flush or bracket mounting options
Specifications
- Weight : 0,51 kg (1,13 lbs)
- NMEA 2000 Connectivity : 1 X NMEA2000 Micro-C port 5 LEN
- Supply Voltage : 12V DC (10,8-15,6V DC)
- Dimensions W x H x D : 177 x 115 x 56mm (7 x 4,5 x 2,2″)
- Warranty Period : 2 years
- Power Consumption typical : 2,3W
- Operating Temperature Range : -25° to +65ºC (-13°F to +149 ºF)
- Display Resolution :320 x 240, 4:3
- Power Consumption max : 3W
