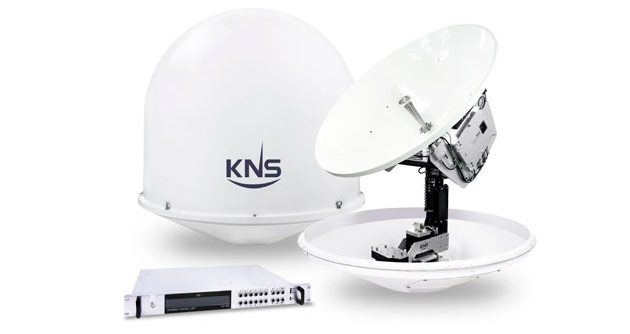

The SuperTrack Z-Series is the perfect solution for ships looking for broadband speeds at sea. Stay in touch with your networks via high speed access to the internet, email, multiple VoIP phones and more.
Features
- Unlimited Azimuth & Brake System
- Accurate Signal Acquisition by KNS’s Distinctive Algorithm
- Pre-programmed Satellite Database
- Antenna Control Unit
- Anatel Certified
- Web Interface & Remote Software Upgrade Available
Specifications
- Radome Material : FRP
- Operating Platform : 3 – Axis
- Skew Control : Automatic
- Cross Angle : ± 35˚
- Tracking Speed : More than 90˚/sec
- Temperature : -20˚C to +55˚C
- Humidity : Up to 100% @ 40˚C
- Antenna Input Power : 48V DC, 4.18A
Series
Z6MK3 – Ka |
Z10MK3 – Ka |
Z10MK3 – Ku |
Z12MK3 – Ku |
Z15MK3 – Ku |
Z8MK3 – Ku |
Z7MK3(with Shock) – Ku |
Z7MK3 – Ku |
|
| Dish Diameter | 60cm(24in) | 100cm(40in) | 100cm(40in) | 120cm(49in) | 150cm(60in) | 83cm(33in) | 75cm(30in) | 75cm(30in) |
| Antenna Dimension | 102cm(D) x 104cm(H) | 144cm(D) x 152cm(H) | 144cm(D) x 152cm(H) | 161cm(D) x 163cm(H) | 212cm(D) x 206cm(H) | 113cm(D) x 117cm(H) | 113cm(D) x 117cm(H) | 102cm(D) x 104cm(H) |
| Weight | 62 Kg | 119 Kg | 120 Kg | 138 Kg | 260 Kg | 87 Kg | 86 Kg | 67 Kg |
| Antenna Gain | TX : 43.71 dBi @ 30.0 GHz RX : 40.78 dBi @ 20.2 GHz |
TX : 47.84 dBi @ 30.0 GHz RX : 44.9 dBi @ 20.2 GHz |
TX : 41.0 dBi @ 14.25 GHz RX : 40 dBi @ 11.75 GHz |
TX : 42.87 dBi @ 14.25 GHz RX : 40.95 dBi @ 11.75 GHz |
TX : 45.25 dBi @ 14.25 GHz RX : 43.8 dBi @ 11.75 GHz |
TX : 39.9 dBi @ 14.25 GHz RX : 38 dBi @ 11.75 GHz |
TX : 39.1 dBi @ 14.25 GHz RX : 37.5 dBi @ 11.75 GHz |
TX : 39.1 dBi @ 14.25 GHz RX : 37.5 dBi @ 11.75 GHz |
Brochures/Product Link
Z7MK3 – Ku
Z7MK3(with Shock) – Ku
Z8MK3 – Ku
Z10MK3 – Ku
Z12MK3 – Ku
Z15MK3 – Ku
Z6MK3 – Ka
Z10MK3 – Ka
