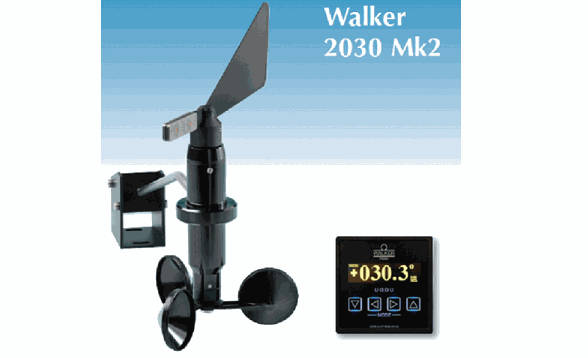

The Walker 2030 uses a Combined Anemometer Cup & Vane Direction Sensor, the P296. This gives high accuracy in a robust compact package! The Sensor connects directly to a standard Walker DIN 96 x 96 wind speed direction indicator, the P1251, which gives digital displays of relative wind speed & direction.
True wind systems are available by using this sensor with the Walker P1066 True Wind Interface Unit.
FEATURES
- Proven Accuracy and Reliability
- True wind systems are available by using this sensor with the Walker P1066 True Wind Interface Unit.
- Wind Speed & Direction System, using P1251
Combined Sensor Unit.
Specifications
- System
The sensor converts wind speed and direction into serial digital
data. - Sensor
Mounting by base flange. - Indicator
Standard DIN 43700 case; 96 x 96 mm – depth 62.5mm
Weight: 1.2 Kg - Wind Speed Measurement
Range 0–100 knots
Accuracy +/- 0.5 knots
Resolution 0.1 knots - Wind Direction measurement
Range 0° – 359°
Accuracy +/- 3°
Resolution 0.1° - Option
2030 Mk2 Wind Speed
& Direction True System,
P1066 True Wind
Interface Unit
Brochures/Product Link
wind speed&direction 2030 MK2
