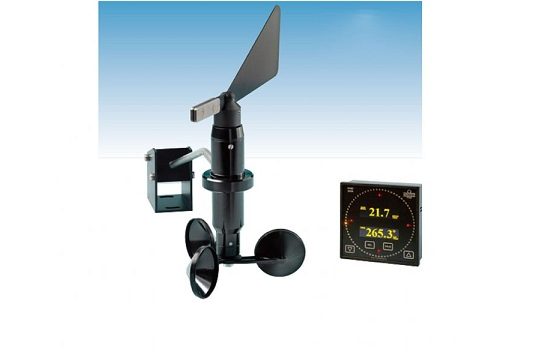

The Walker 2050 uses a Combined Anemometer Cup & Vane Direction Sensor, the P296. This gives high accuracy in a robust compact package!
The Sensor connects directly to a standard Walker DIN 144 wind speed & direction indicator, the P249, which gives digital displays of relative wind speed & direction. Wind direction is also displayed on a simulated analogue display by 72 LEDs. True wind systems are available by using this sensor with the Walker P1066 True Wind Interface Unit.
FEATURES
- Proven Accuracy and Reliability
- Wind Speed & Direction System, using P296 Combined Sensor Unit.
Specifications
- System :
The sensor converts wind speed and direction into serial digital data. Data is displayed by the P249 Indicator in digital format and also in analogue for win direction. - Sensor :
Mounting by base flange. - Indicator
Standard DIN 43700 case; 144 x 144 mm – depth 110mm
Weight : 1.2 Kg - Wind Speed Measurement :
Range 0–100 knots
Accuracy +/- 0.5 knots
Resolution 0.1 knots - Wind Direction measurement :
Range 0° – 359°
Accuracy +/- 3°
Resolution 0.1° - Option :
2050 Mk2 Wind Speed & Direction
True System, P1066 True Wind
Interface Unit - Input voltage : 24v DC 40mA
Brochures/Product Link
wind speed &direction 2050MK2
