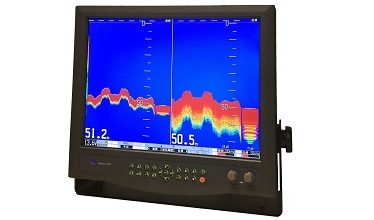

V-1502

Features

• Dual-Frequency professional fish finder equipped with a 15 inch XGA LCD Display
• Fully automatic operation (AUTO mode) is available for bottom tracking (automatic range selection and automatic adjustment of receiver gain control
• 18 selectable main depth range and 15 sub range for suitable fishing
• Higher-than-normal sounding rates for enhanced fish detection capability at shallow depths when traveling at high speeds or when searching for fast-moving target
• Bottom-locked expansion function to easily discriminate bottom-feeding fish from the seabed contour or to survey the nature of bottom in greater detail

Specifications

• Display Screen : 15 inch XGA 1024 x 768 dot Color TFT LCD with LED backlit
• Echogram color : 16 echogram color presentation with 5 selectable background color
• Operating Frequencies : Dual-Frequencies combination from 28kHz, 50kHz or 200 kHz
• Transmit Power : 1kW (50/200KHz), 2kW (50/200KHz), (28/200KHz), (28/50KHz)
• Depth Ranges : 3.0 to 2000m, 3.0 to 2000FM, 3.0 to 2000BR, 10 to 7000FT
• Mode of operation :  Auto Mode (Range and Gain) or Manual mode
• Velocity standard : 2 selectable velocity for sea-water (1500 m/s) or freshwater
• Position Display : External GPS position display
• Alarm :  Bottom alarm (Shallow or Deep), Fish alarm
• External Interface : RS-422 and 8-pin NMEA0183 connector
• Output : Real-time output of sounding data along with GPS-derived information from external GPS source
• Input data $GPRMC, GPGGA,$GPVTG,
• Output data $SDDPT (Depth), $WIMTW (Temperature)
• Cabinet size : 356mm (W) x 323mm (H) x 98.5mm (D)
• Display unit Weight : 4.5 kg Main unit, 1.5 kg Mounting bracket
• Power Requirements : 11 – 40VDC, floating ground approx.36W
