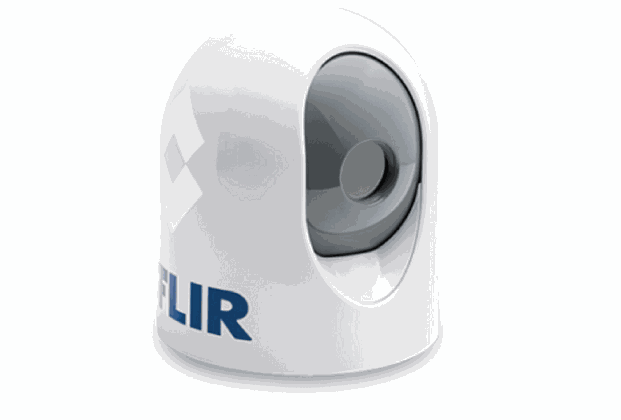

This affordable, fixed-mount thermal night vision system helps with steering around obstacles, collision avoidance and finding people in the water at night. Simple to mount and easy to integrate into your existing electronics, MD-Series’ display can be mounted separately on your dashboard, or the feed can be integrated into an existing display to save space.
FEATURES
- Available in 320 × 240 and 640 × 480 resolutions
- 2× e-zoom standard; 4× e-zoom included on MD-625
- Ethernet-enabled for simple integration into your current electronics
- Slim profile (7” high and only three pounds) makes for an unobtrusive mount
Specifications
- Image Processing : FLIR Proprietary Digital Detail Enhancement
- Size : 6” dia. × 7” ht.
- Pan/Tilt Coverage : Pan: ±30° per key
Tilt: +34°, -27°
(Locked in at Installation) - Connector Types : F-type BNC with BNC-to-RCA adapter included for video out
- power consumption : 4.8 W nominal; 12.5 W max
- Warranty : 2 years
Series
| Model | Detector Type | Focal Length | E-zoom |
| MD-324 | 320 × 240 VOx Microbolometer | 13 mm | 2× |
| MD-625 | 640 × 480 VOx Microbolometer | 25 mm | 2×, 4× |
