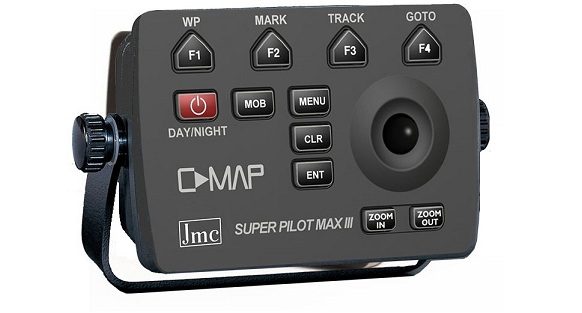

Super Pilot MAX III

Features

• Built-in background for general navigation World map
• Supports C-MAP MAX maps as well as existing C-MAP supports NT / NT + maps
• Displays latitude / longitude, UTM or Loran-C TD coordinates
• Advanced ground alarm; obstacles, rocks, fish clusters etc. warns against
• Feature of being a colorful radar screen when the radar sensor is connected
• Ability to display the positions of other ships with RT-2500 interface on the plotter screen (Optional plotter interface is required)
• Colorful, fully functional, fishfinder feature when Echosounder sensor is connected
• Displaying AIS information on the map when the AIS receiver is connected
• Optional marine monitor MM-15 or commercial PC monitor available
• Optional remote control unit
• C-WEATHER services can be received when the C-COM module is connected
•  By connecting to the Standard PC and GPS sensor , the device becomes an advanced affordable C-MAP digital map plotter .
•   With the 3-channel I / O interface, NMEA-0183 GPS receiver and C-COM modem can be connected. Optional in the new 12-channel GPS receiver.
• Operating at 200 MHz, ARM SERIES works very fast with hardware designed on CPU
• Includes 2 world maps for navigation. So you can see important symbols and lines
•    You should provide C-MAP map for your detailed updated region map for the region you want.
• When the user points to the objects on the map that show the locations such as ports, obstacles, buoys etc., a screen appears   and   gives the coordiinate information .

Specifications

• Display Mode : Auto or Manual Resolution Setting
• Resolution : Mulutiple 1280×720 , 1024×600
• Power requirment : 10-35 VDC , 1.2 W
• color Presentation : 16 Color
• Weight : 350 Gram without bracket

Brochures/Product Link

Super Pilot MAX III
