Simrad IS44 Heavy Duty Autopilot with Virtual Feedback Includes IS44 Control Head, NAC-3 Processor, and Precision 9 Compass The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10 metres (33 feet) or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).
Features
- Ideal for outboard and I/O boats up to 15 metres (50 feet)
- Complete pack includes everything you need to get started
- Virtual Rudder Feedback simplifies installation
- Easy setup with automatic tuning and compass calibration

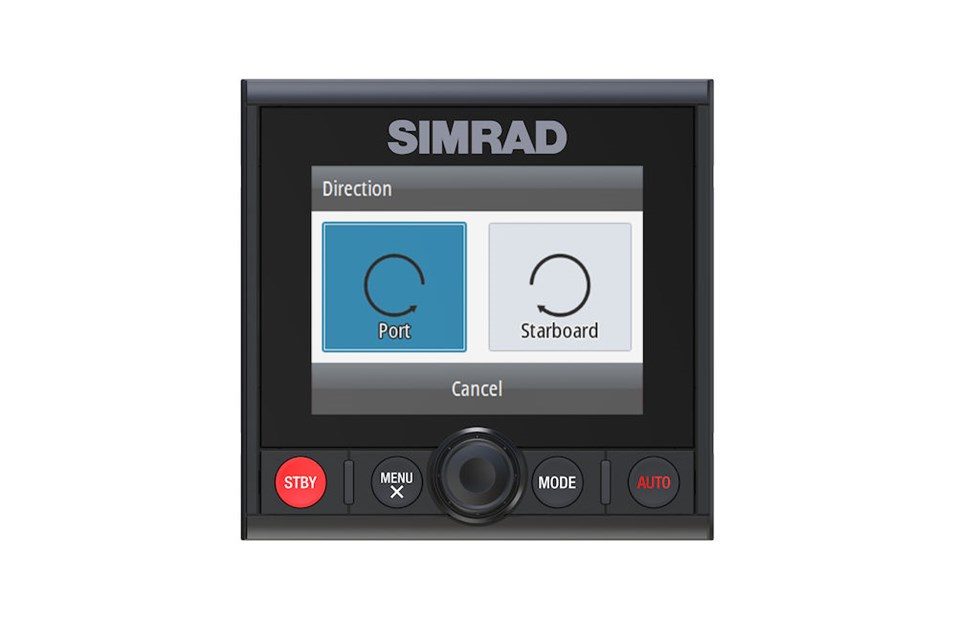

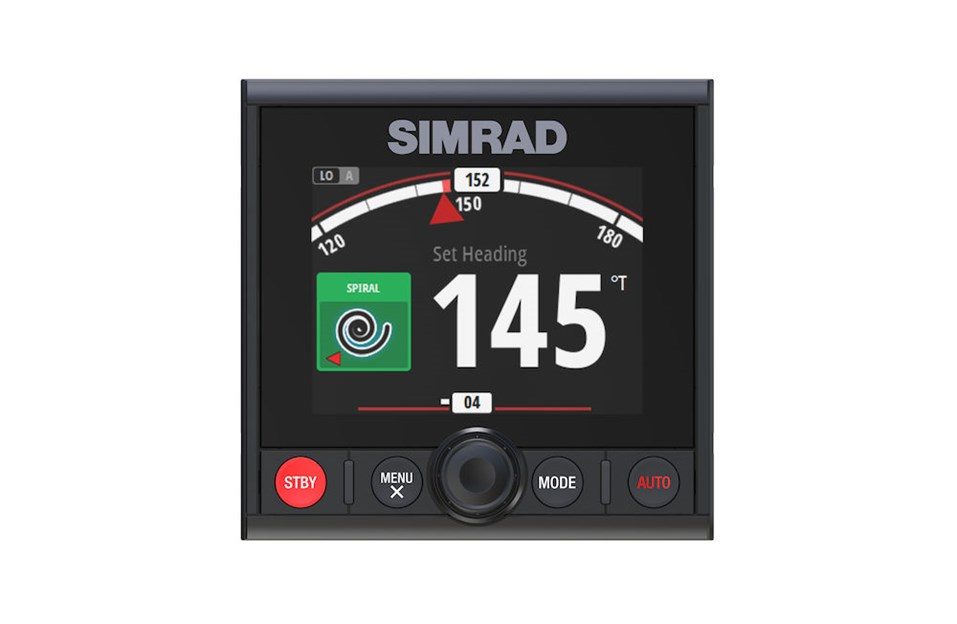

- Features automated turn patterns for fuel-efficient, hands-free manoeuvres
- No Drift steering holds your course against wind and tide
- Depth contour tracking makes it easy to fish ledges and drop-offs
Specifications
- Dimensions : 19 x 10 x 15 inches; 16 Pounds
- Connection Interface : NMEA 0183
- Display Color : Color
- Display Type : LCD
- Drive Type : Sold Separately
- Warranty Details : Two Years IPX7 Waterproofing
What's in the box?
- TR-120-KIT Network Terminator Kit
- N2K-PWR-RD Network Power Node
- Precision-9 Compass
- RPU160 Drive Unit
- NAC-3 Autopilot Computer

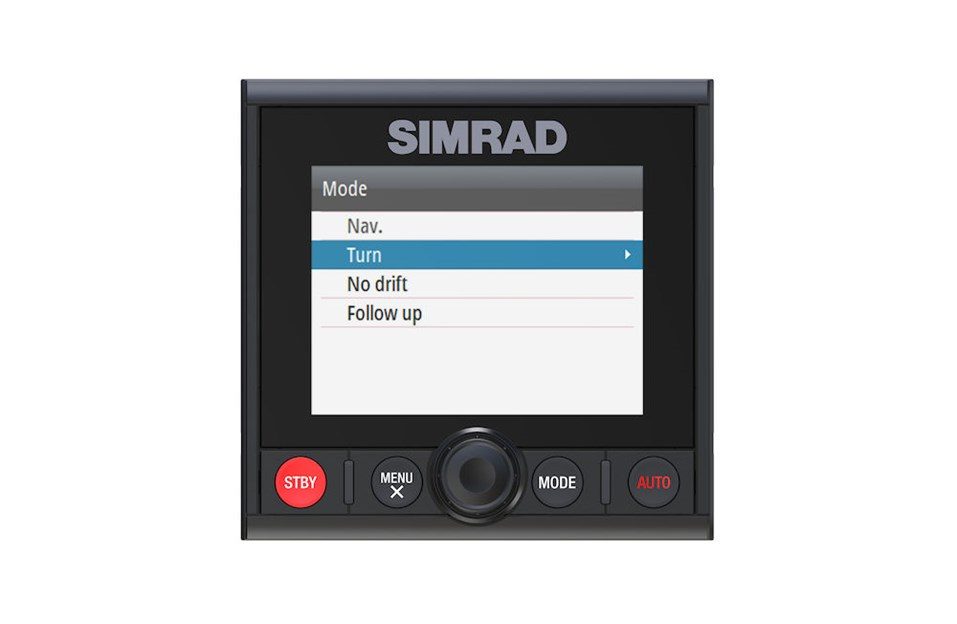

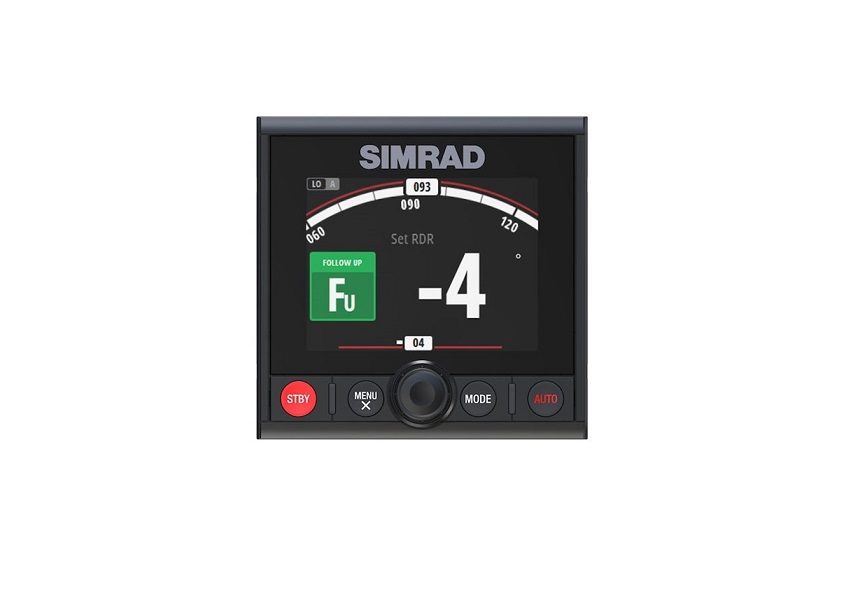

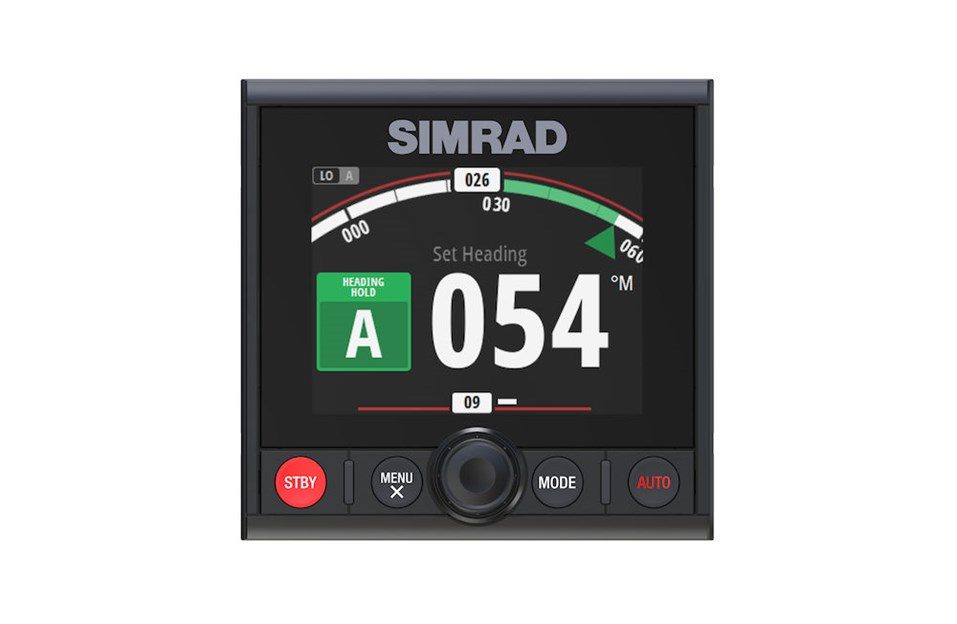

- AP44 Autopilot Controller
Brochures/Product Link
AP44 VRF Pack High Capacity
