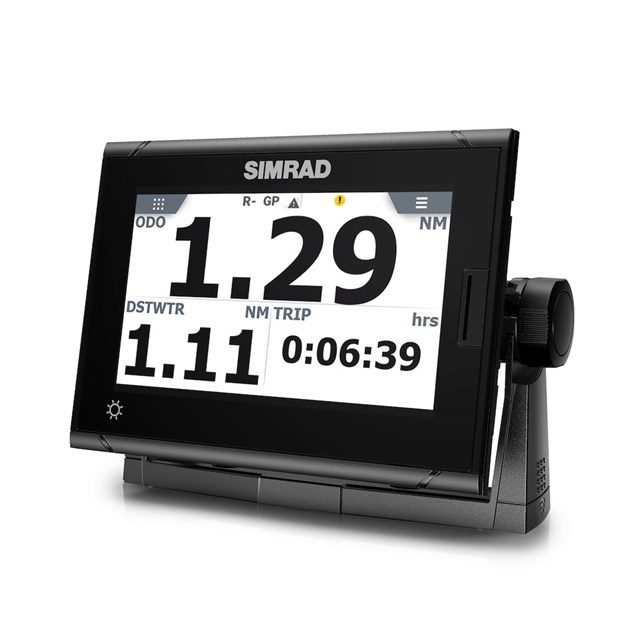

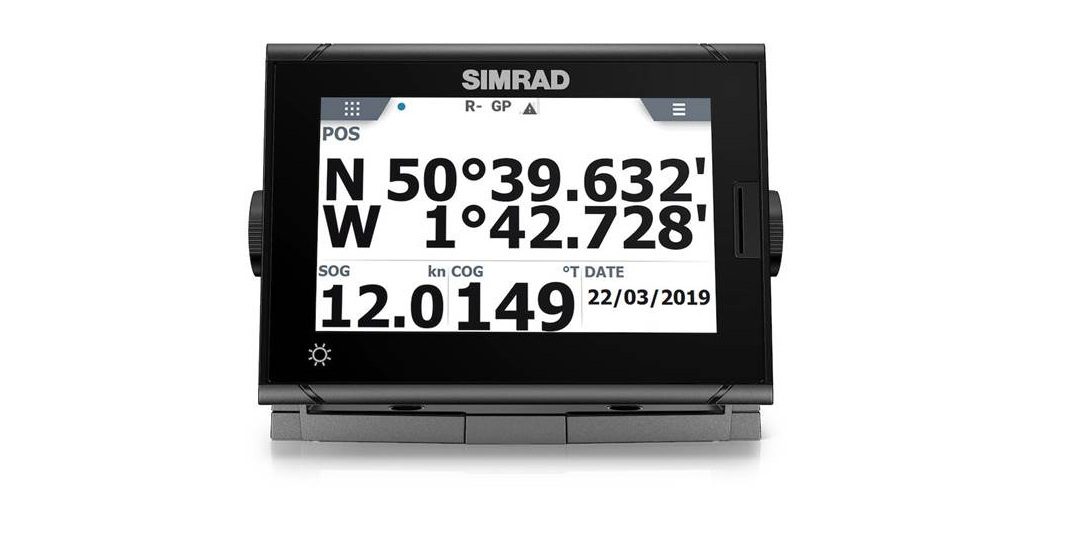

The Simrad® P3007 GPS System offers a 7-inch superior colour display with easy touch control, position data accuracy, and reliability while enabling distribution of position, course, speed, time and navigation data to other bridge systems such as radar, ECDIS, and the autopilot. Offering a flexible installation by supporting a wide variety of I/O signal types, and a high clarity and contrast viewing distance with great data visibility.
Features
- Easy to operate
- Touch display
- Intuitive familiar menu system
- Great viewing distance, clarity and contrast. Great data visibility
- Flexible installation options
- Ethernet/LWE (IEC61162-450)
- Replacement for MX612/MX610/GN70
- Works with direct antenna connection
- Scalable system with MX Junction box 610 or 612
- GPS Navigator and GPS Compass in one solution
Specifications
- Operating Temperature Range : – 15° to +55° C (5° to 131° F)
- Storage Temperature Range : – 20° to +60° C (4° to 140° F)
- Weight : 1.32 kg (2.91 lbs) display only
- Supply Voltage : 12/24 VDC (9.0 – 31.2 VDC min- max)
- Screen Brightness : 1200 nits
- Dimensions W x H x D : 197 x 141 x 83 mm (7.7 x 5.6 x 3.3 in) display only exc bracket
- Warranty Period : 2 Years
- Recommended Fuse Rating : 3 Amp
- Power Consumption max :11.1 watts
Brochures/Product Link
P3007 GPS
