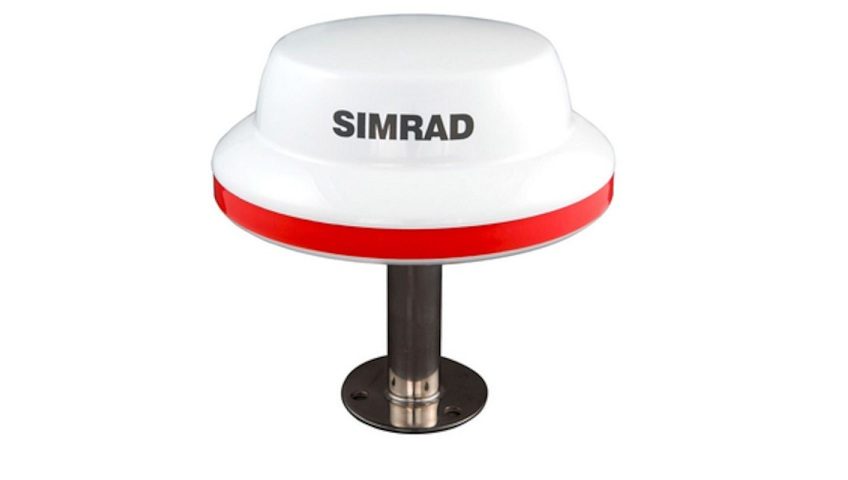

MX521B DGPS Smart Antenna with GLONASS

The MX521B is a precision D/GNSS (Global Navigation Satellite System) D/GPS positioning solution in a smart antenna.

Features

IMO compliant GPS/DGPS sensor with GLONASS (SIMRAD CDU is required to comply as an IMO approved system)
Enhanced position performance with GLONASS
Flexibility for easy integration into NMEA 0183 interface
RAIM (Receiver Autonomous Integrity Monitoring) enabled
Meets Smart Beacon specifications for DGPS Smart Antenna
Connects directly to MX Control and Display Unit
Better than 1 meter DGPS Position accuracy
Better than 3 meter GPS position accuracy
Built-in DGPS source including SBAS (WAAS, EGNOS, MTSAT)
D/GPS mode compatibility with MX Seris CDU and P3007

Power Consumption max : .38 A nominal
Position Accuracy : < 1m (2D RMS) depending on distance from differential base station
Supply Voltage : 10.5 – 32 VDC
Dimensions Diameter : 182mm x 102mm
Warranty Period : 2 Years
GPS Receiver Channels : 270 GPS and GLONASS
Power Consumption typical : 4.6 W Nominal
Weight : 820g (1.8 lbs)
