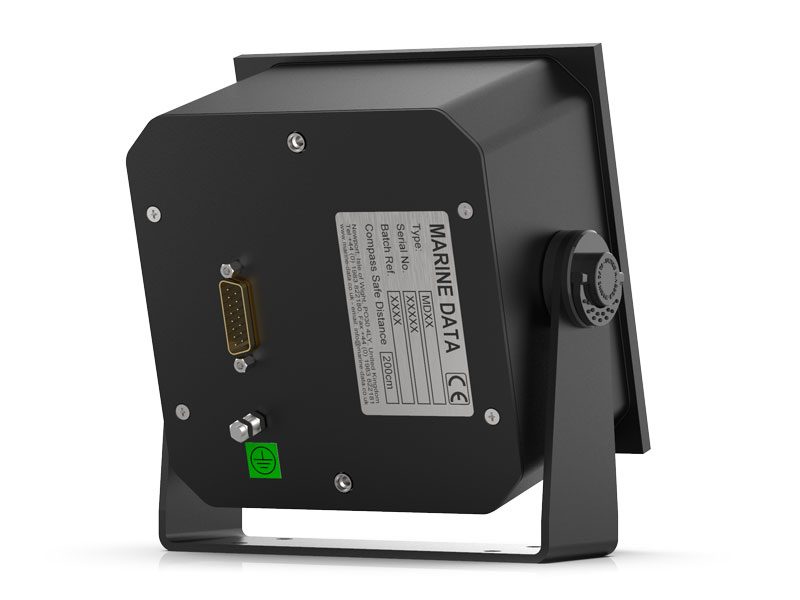

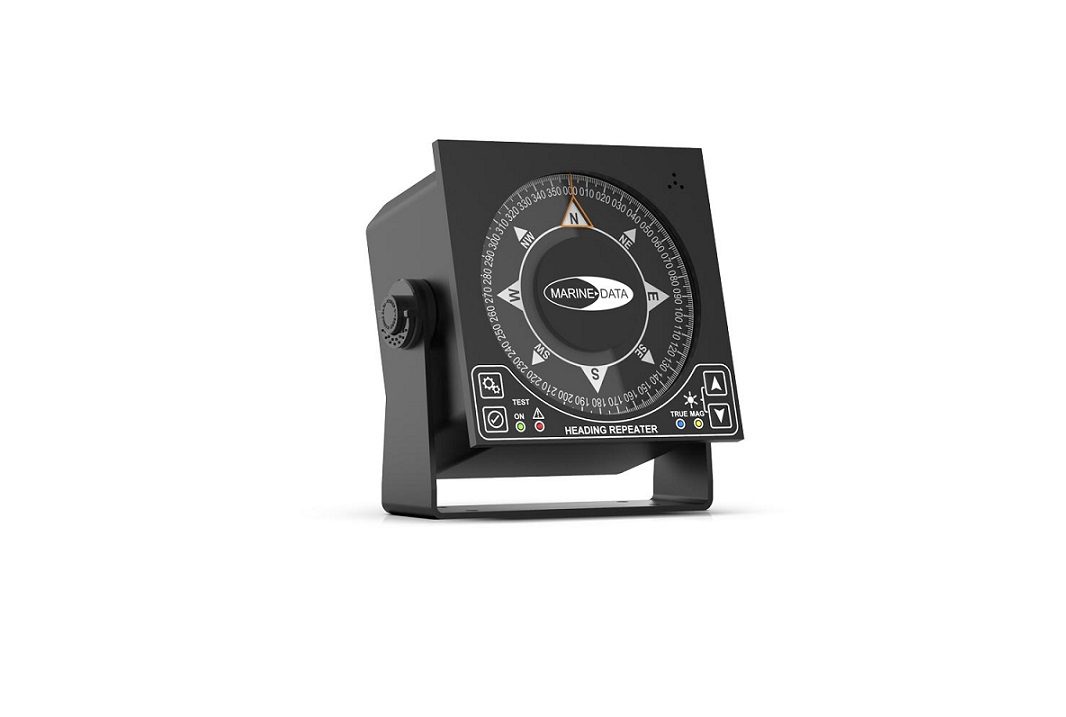

MD77HR Dial Compass Heading Repeater Display

Heading Repeater with 118mm compass dial display, with touch controls. Enclosed in a compact, powder coated aluminium casing.

The MD77HR is a NMEA-based Compact Heading Repeater. Digital heading data (ship’s heading) may be conveniently displayed and monitored at any location on a vessel.

When multiple heading sources are available in the heading data (e.g. True and Magnetic) the MD77HR allows the user to select the heading source and indicates which heading source is in current use.

The MD77HR from Marine Data: flexible in application, easy to install and simple to maintain.

Features

Traditional Marine Compass Card Display
Main and Emergency power supplies; with monitoring of both
Automatic Baud Rate Detection
Automatic indication of loss of valid heading data
Automatic detection of a previously lost heading data type without requiring a reset
Prioritisation of heading type
Local and Remote Dimming Control
Rugged, Marinised Aluminium Construction
