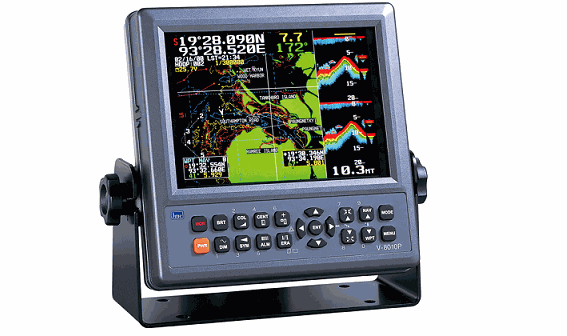

JMC V-6603P / V-6810P

Features

Combination of GPS track plotter and full function dual frequency echo
sounder
Daylight-viewing TFT LCD with LED backlighting for long service life
Full screen display of track plotting, fish finder, CDI or satellite information
page
Split screen display of simultaneous track plotting and dual/single frequency
echogram
A-scope display of echogram for instant fish detection and size assessment
Built-in electronic chart of user-specified area, eliminating need for chart
cards
Independent Man-overboard (MOB) waypoint, protected against unintended overwriting
Multi-language menu including Asian fonts (e.g. Chinese, Gujarati, Korean, Thai)

Screen: QVGA LCD 5.7-inch (V-6603P), 6.5-inch (V-6802P), LCD Backlighting:
LED (V-6603P), fluorescent lamp (V-6802P)
GPS Receiver: 18-channels, 1575.42 MHz C/A code, DGPS/WAAS-ready
Map Coverage: User-specified area between 85° N/S, north-up Mercator
Map Scales: 1/2250 to 1/25 million or 0.1 to 1500 n.m. in 30 steps
Discrete Waypoints: 8000 (V-6603P), 4000 (V-6802P) + 1 MOB waypoint
Boundary Points: 400/color (2800 in total)
Track Storage: 8000 GPS fix points
Transducer: 50/200 kHz dual frequency crystal in single housing, 400W rms
Depth Ranges: 2.5 to 1000m/fathoms/braccia in 15 steps
External Interface: NMEA-0183/IEC 61162-1
Power Requirements: 11 to 40 VDC, approx. 22W
Weight: Approx. 1.85 kg with bracket
Size: 196(H)X196(W)X129(D) mm, less bracket
