The S5100 high-performance CHIRP echosounder module features three fully independent channels able to deliver simultaneous, high-resolution coverage across multiple depth ranges. Advanced processing technology delivers noise-free clarity at all ranges, and maintains a solid bottom lock while travelling at speed. Combine wide and narrow transducer beam-widths to reveal more fish, pinpoint small and tightly spaced fish, and identify thermoclines; or select specific CHIRP frequencies from 28 to 250 kHz to precisely target specific depths with clear target separation.

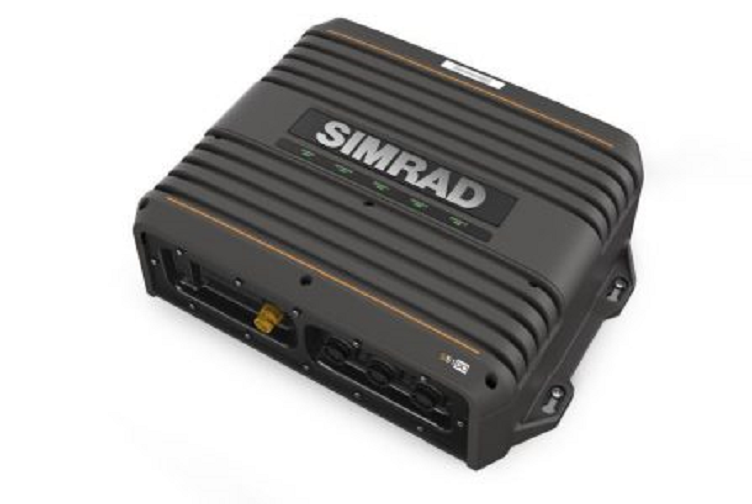

Echosounder S5100 Sounder with CHIRP
Features
- Three fully independent sonar channels deliver high-resolution coverage
- Noise-free clarity at all depth ranges
- Combine any three frequency ranges to target multiple depths, including Ultra-Low, Low, Medium, or High CHIRP
- Compatible with wide-angle CHIRP transducers for greater coverage of the water column
- Simultaneous split-screen viewing of multiple depth ranges on any compatible Simrad display
- Maximum power output 3 kW RMS (transducer dependent)
- Easy to install or retrofit with three plug-and-play 9-pin transducer connectors
- Compatible with Simrad NSS evo3 and NSS evo2 multifunction displays, NSO evo2 systems, and S2000-series fish finders
Specifications
- Power consumption : 85W max
- Power supply : 12 or 24 (10.4 – 31.2)
