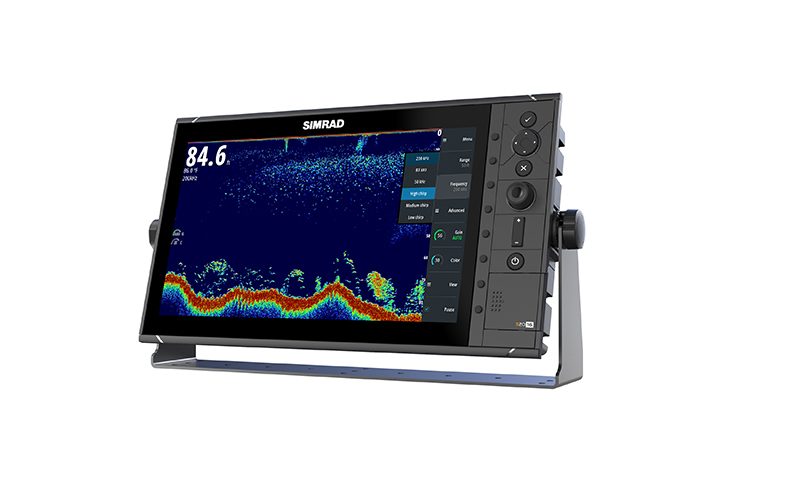

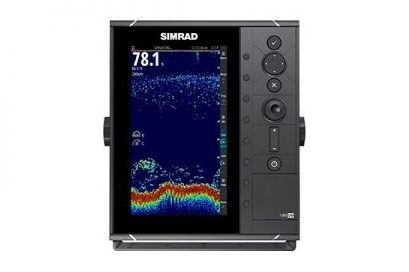

The Simrad S2009/S2016 Fish Finder combines a single-channel Broadband Sounder™ module with CHIRP technology, 9-inch,16-inch portrait display for maximum vertical detail, and intuitive keypad-driven operation. Robust yet compact with both bracket and flush-mount installation options, the S2009 was designed to meet the need for a dedicated fish finder display aboard coastal and offshore fishing vessels.
Features
- Dedicated fish-finder with integrated single-channel Broadband Sounder™ module and CHIRP technology
- High depth penetration and ping speed
- Vertical heave compensation
- High-brightness display ideal for outside installation
- See clearly with White Line, White Marker, and Colour Erase features
- Simple operation with 8 direct-access menu keys
- Bracket and flush mounting options (bracket included)
- Full-sized SD card slot for logs and software updates
- Ethernet, NMEA0183 & NMEA2000 connectivity.
Specifications
- Output power : 1KW rms
- Echosounder Max Depths : 3,000 m / 10,000 ft (transducer-dependent)
- Frequency : CHIRP 28-38 kHz, 40-60 kHz, 85-145 kHz, 130-210kHz, Broadband 28kHz, 38kHz, 50kHz, 83kHz, 200kHz
- Power Supply (Supply Voltage) : 10.8-31.2 VDC
Series
| Display | |
| S2009 | 9-inch |
| S2016 | 16-inch |
