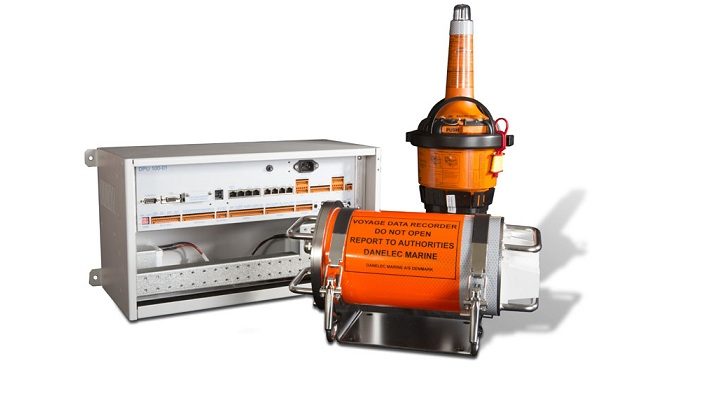

The newest generation DM100 VDR meets all requirements and performance standards of MSC.333(90) and IEC 61996-1 Ed.2. Danelec VDR systems are designed to record and store, in a secure and retrievable form, information concerning the ship’s position, movement, physical status and command and control for the period leading up to and following an incident. Designed specifi cally for maritime application down to the last component, Danelec VDRs o er high quality and reliability in a compact and lightweight, easy-to-install solution.
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 94
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 95
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 96
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 97
Features
- VDR Explorer Playback Software
- DanelecConnect Remote Management Solution
- Data shall be recorded internally in the VDR for a minimum of 30 days/720 hours
- Data shall be recorded in a fl oat-free capsule, in addition to a fi xed capsule
- Data shall be recorded for a minimum of 48 hours in both capsules
- Bridge audio shall be recorded using at least two tracks for indoor microphones
- Outdoor microphones shall be recorded on an additional separate track
- Images, charts and settings from the ECDIS shall be recorded
- Images from both radars on the vessel shall be recorded
- Data from the AIS shall be recorded
- Data from an inclinometer shall be recorded, if installed
Specifications
Data Acquisition Unit(Standard)
- 30 days of recording capacity on built-in SSD
- 10 inputs for bridge audio and VHF
- 12 inputs for serial data (IEC 61162-1, IEC 61162-2 and Modbus)
- 7 inputs for IEC 61162-450 network data(1000BASE-T)
- AC power (110-230V, 50-60Hz)
- Built-inUPS with NiMh batteries
Protective Fixed Capsule(Standard)
- 48 hours of recording capacity
- 90 days acoustic underwater beacon
- Supplied with 50 meters cable
Float-free Capsule(Standard)
- 48 hours of recording capacity
- Supplied with 50 meters cable
- Ethernet(100BASE-TX) interface
- Powered from Data Acquisition Unit (PoE)
- COMSAR/COSPASS approved EPIRB
Bridge Control Panel(Standard)
- Interface for Operational Performance Test
- Built-in graphical color TFT LCD display
- Ethernet (100BASE-TX) interface
- Powered from Data Acquisition Unit (PoE)
Bridge Microphones(Standard)
- Built-in buzzer for self-test
- Built-in amplifier and filters
- IP66 water resistant(outdoor only)
- Powered from Data Acquisition Unit
Sensor Interface Unit(Option)
Remote Data Interface(Option)
Remote Video Interface(Option)
Remote Audio Interface(Option)
Extended Data Storage(Option)
VDR Conversion Kit(Option)
