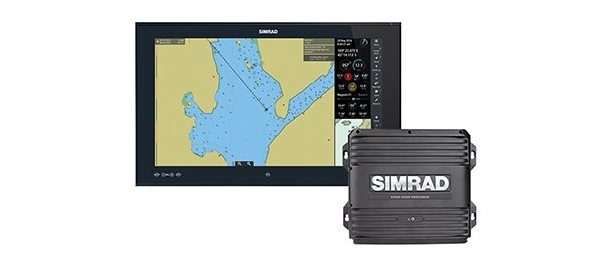

The Simrad E5024 ECDIS system is an IMO type-approved navigation system, designed for use aboard SOLAS vessels including large passenger ships, tankers, and cargo ships subject to the ECDIS Carriage Mandate. Ideal for vessels required to retrofit ECDIS to meet amended SOLAS requirements, the modular E5024 ECDIS system offers simple installation in either single-station or dual-station (PLECDIS) configurations.
Features
- 24-inch, Full-HD 16:9 widescreen for large, clear charts
- Wireless trackball controller with on-screen keyboard
- Radar, AIS & ARPA overlay
- Designed for NAVTOR ENCs including UKHO (for AVCS), Primar, IC-ENC, and NOAA
- Third-party chart support with S-57 and S-63 import
- Choose between S-52 and INT1 chart presentation
- Supports AIO (Admiralty Information Overlay)
- Simple dual-station PLECDIS option
- Control Simrad radar, echosounders, and more from an optional non-approved second station
Specifications
- Display Resolution : 1920 x 1080 pixels
- Display Type : LED-backlit TFT LCD
- Display Brightness : 300 cd/m2
- Power Supply : 9-31.2V DC
- Power Consumption : 45W max (Processor)
30W nominal (Display) - Product Weight : 1kg (Processor)
6.6kg (Display)
Brochures/Product Link
PLECDIS E5024
