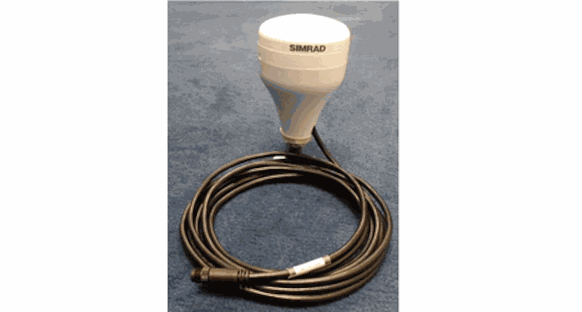

The Simrad GS70 is an IMO compliant GPS smart antenna that integrates with the Simrad GN70, MX610 or MX612 navigation system via NMEA 2000 to provide accurate position information at a user-selectable update rate.
Features
- Easy to install with NMEA 2000 interface
- Receives DGPS corrections from SBAS (WAAS, EGNOS, MSAS) satellites
- Receives RTCM corrections from NMEA 2000 Bus with MX610 junction box
- Designed with 32 channel GNSS receiver
- Position update rate at 1, 5, or 10 Hz
- GPS accuracy (2D RMS) of 5m and DGPS accuracy (SBAS) of 2m
Specifications
- Operating Temperature : -25°C to +60°C
- Operating Temperature Stored : -40°C to +85°C
- Waterproof Standard/rating : IPx6,7
- Product Width : 90mm
- Product Height : 38mm
- Humidity Range [rh] : 40°C, 93%RH, operating
- DGPS Accuracy : 2m
Brochures/Product Link
GS70 GPS
