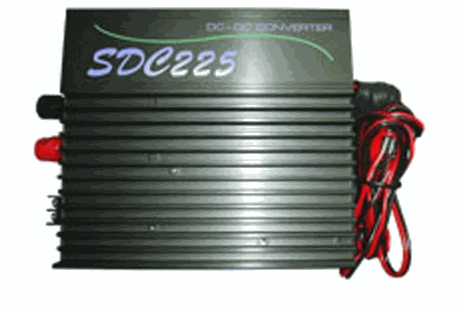

SDC-210/225/245 Power Converter

Category: Power Supplies & Converters Product Brand: Manson

Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/inc/shortcodes/share_follow.php on line 23

Description
FEATURES
Specifications
Series
Brochures/Product Link

This series of switching mode DC-DC reducer-converter are built with a heavy anodized aluminum heat sink housing. The switching mode conversion technology results high efficiency, less heat, and a good low line and load
regulations.The on-off power switch saves battery power without manual disconnection input hard wiring when the car is switched off.
The SDC-225 & 245 have additional auxiliary output for low power equipment as well.

FEATURES

13.8V DC regulated output voltage
22 – 30V DC input voltage
High efficiency 88%
High power density
Output over voltage protection
Overload and short circuit protection
LED power on indicator
EMC INTERFERENCE IMMUNITY
Power on-off switch

Specifications

Input Voltage Range : 22 – 30VDC
Output Voltage : 13.8VDC
Indicators : LED Power
Input Fuse Type : Standard Car Blade Fuse
Protection Devices : Overload, Over Voltage, Short Circuit
Input Connection Type : Cable

Series

	Continuous Output Current	Maximum Output Current	Output Connection Type	Accessory
SDC-210	8 A	11.5 A	Cable	Nil
SDC-225	20 A	25.5 A	Terminal	Mounting Bracket
SDC-245	40 A	45 A	Terminal	Mounting Bracket
