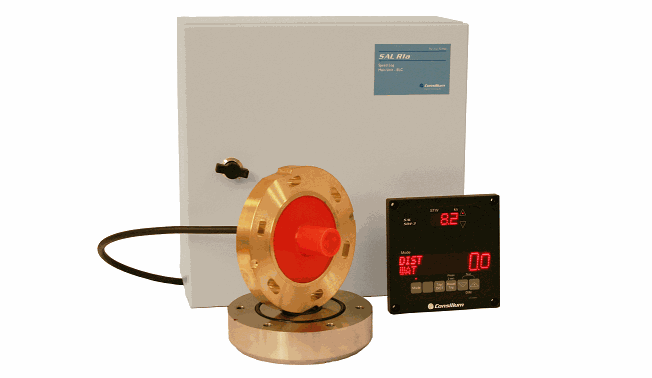

SAL R1A Easy Tank Speed Log

Categories: Fishing Vessels, Merchant/Sea Going Vessels, Pleasure Yachts, Speed Log, Work boats Product Brand: Simrad

Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/inc/shortcodes/share_follow.php on line 23

Description
Features
Specifications
Brochures/Product Link

The SAL R1a is an IMO type-approved speed log for measuring longitudinal speed through water (STW), based on proven Acoustic Correlation technology. The speed log is designed to meet requirements as specified by authorities and ship owners, with performance exceeding applicable IMO specifications. Its closed-ended installation is simple and cost-effective, with no need for a watertight compartment or piping above the waterline.

Features

High performance due to proven Acoustic Correlation technology
Flexible calibration allows highly accurate readings throughout the speed range
Easy set-up and calibration from the bridge display
Easy to install with only a few mechanical parts, lightweight bottom arrangements, and transducer mounting from inside the hull
Space saving with compact bottom arrangements
Safe due to a rugged mechanical design and watertight cable
Closed ended installation means no need for a watertight compartment or piping above the waterline
Pressure tested and approved according to PN16 (24 bar, 240 m)
Complies with IMO resolution A.824(19)

Specifications

Measuring distance: 130 mm from surface of transducer
Frequencies: 3.8 and 4.2 MHz
Speed range: ±50 knots sensed speed
Speed accuracy: <1% or 0.1 knot, whichever is greater
Power requirement: 230/115VAC 50-60 Hz
Power consumption: 30 watts nominal
Dimensions: 144 x 144 x 16 mm
Weight: 0.6 kg
