The SAILOR 6570/6571 DGNSS System & Basic (Differential Global Navigation Satellite System) set new stan-dards in functionality and flex-ibility for satellite navigation sensors. Built to the highest quality SAILOR standards, they join the already available SAILOR 639X Navtex and SAILOR 628X AIS as new generation network integrated SAILOR products designed to work in the unique SAILOR ‘Multi-Function Universe’.
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 94
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 95
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 96
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 97
Features

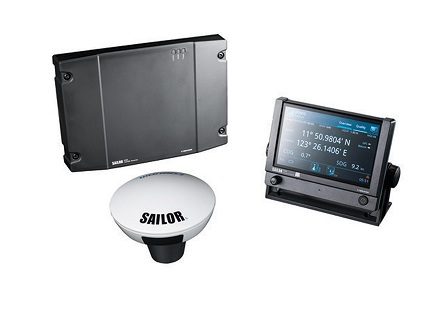

- The SAILOR 6570 DGNSS System come with the SAILOR 6588 DGNSS Receiver, and delivered with the SAILOR 6004 Control Panel and the SAILOR 6286 DGNSS Antenna
- The SAILOR 6571 DGNSS basic come with the SAILOR 6588 DGNSS Receiver, and delivered with the SAILOR 6286 DGNSS Antenna only
Specifications
- Receiving channels of : 30 channels
- Frequency : 1575 MHz (GPS) 1602 MHz (GLONASS)
- GPS / GLONASS positioning system
- Positioning accuracy 1 m (DGNSS) – 1.5 m (without differential)
- Locking time : 45 seconds
- Position update interval : 0.5 sec (configurable)
- Beacon receivers : 283.5 – 325 kHz MSK three parallel receivers
- Input voltage from : 10.8 to 31.2 VDC
- Power consumption : 5W (0.2A at input voltage 24VDC)
- Heat dissipation : <10 W
Brochures/Product link
SAILOR® 657X DGNSS SYSTEM & BASIC
