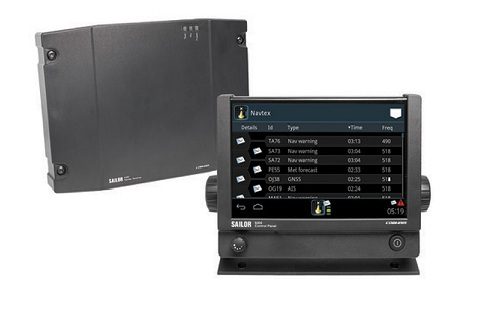

The SAILOR 6390/6391 Navtex System sets new standards in functionality and flexibility for SOLAS man-dated Navtex receivers. As a black box system, with separate touch screen user-interface, it introduc-es a new approach that enhances safety and efficiency, whilst being fully SOLAS compliant. It is a next generation system offering new installation and operation possi-bilities today, with the potential to become part of the fully net-worked bridge in the future.

Features

100% network integration –flexibleinstallation options
Multifunction user friendly touch screen interface – works with different devices
Easy & cost-effective servicing and software updates – easy on board and remote access
SOLAS compliance for Navtex messages – part of the SAILOR 6000 GMDSS Series
Future-proof – ready for bridge and com-munication system integration

Specifications

Power supply : 12-24 VDC
Power consumption : 6.5 W
Operating temperature : -15 ° C to +55 ° C
Storage temperature : -15 ° C to +55 ° C
Degree of protection : IP22
Reception frequency : 490 kHz, 518 kHz and 4209.5 kHz
Active and passive antenna (12 V 60 mA)
Sensitivity
* 490/518 kHz:
12 dBV —– 10 / 150 pF
-6 DBV —– 50
* 4209.5 kHz:
12 dBV —– 10 / 150 pF
6 dBV —– 50
