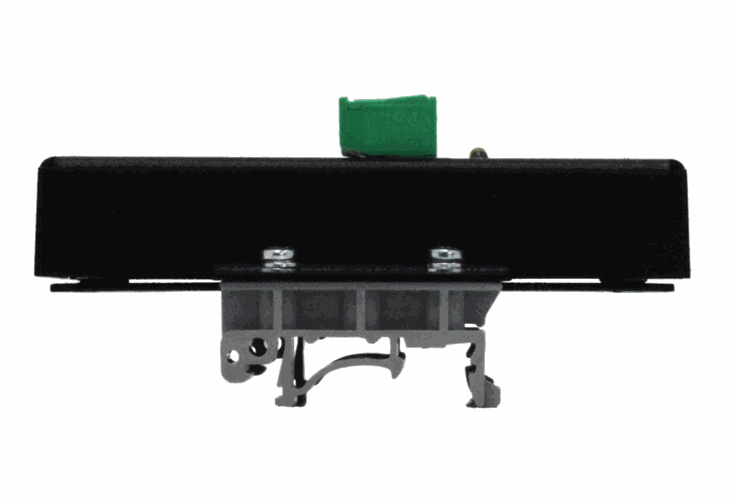

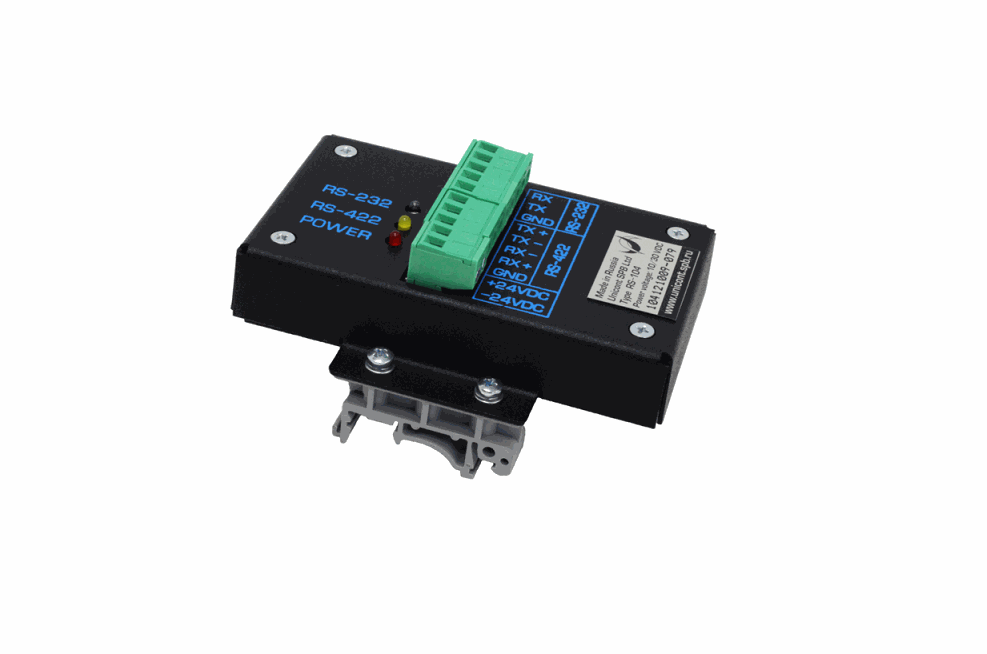

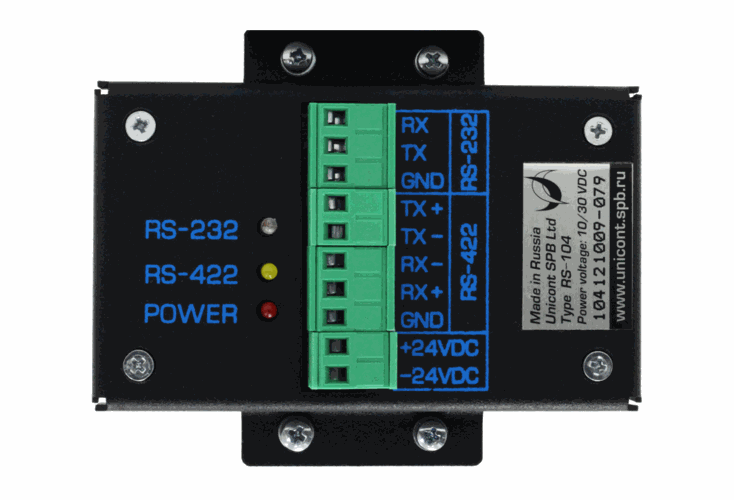

The RS-104 interface converter is designed for the signal conversion between two standards => RS-232 and RS-422. It is the solution to combine equipment operating with RS-232 or RS-422 signals on river- and sea-going vessels.
Specifications
- Overall dimensions : 80x98x31 mm
- Operating temperature : -20…+60 °С
- Weight : 0.2 kg
- Power supply voltage : 10…36 VDC
- Current consumption : max 120 mA
Brochures/Product Link
RS-104
