Combining the best characteristics of traditional pulse and FMCW broadband radar systems, our Halo™ Radar uses Pulse Compression technology to provide an unprecedented mix of long and short detection range, high target definition, and minimal clutter. Solid State technology means minimal warm-up time and maximum ocean-going reliability, while low-power pulsed transmissions make Halo Radar safe to run in anchorages and marinas.
Features
- Beam Sharpening with Target Separation Control
- Dual Range operation
- Advanced signal processing with Custom, Harbour, Offshore, Weather, and BIRDmodes.
- High-speed 48RPM operation
- InstantOn™, ready in 16-25 seconds from power-on, instant from standby
- MARPA target tracking, up to 10 targets (20 with dual range)
- Low electromagnetic emissions and radiation
- Low power consumption with 12/24V operation
- Ethernet connectivity
- Unique blue LED accent lighting with brightness control
Specifications
- power consumption: 150W (peak in 70kt winds), 40W (average with zero wind velocity), 6.5W (standby)
- Antenna rotation speed:Approx. 24-48RPM (min 20RPM at 70 knots)
- Radar max. range:100m
- supply voltage:10.8V – 31.2V DC(12/24VDC systems)
- Radar vibrations:2-100Hz and 20G, 100,000 cycles, Synthesized – X-Band 9.410–9.495GHz
Series
| Antenna distance range | Antenna foot | |

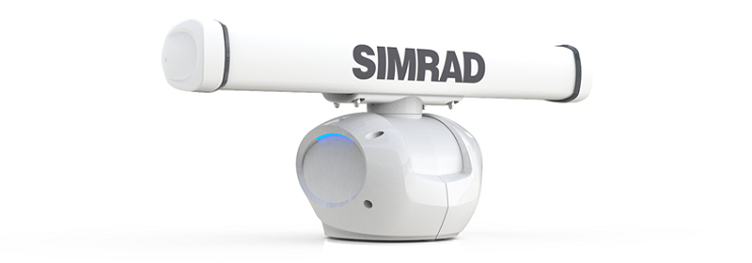

| HALO™-3 | 48NM | 3 foot |

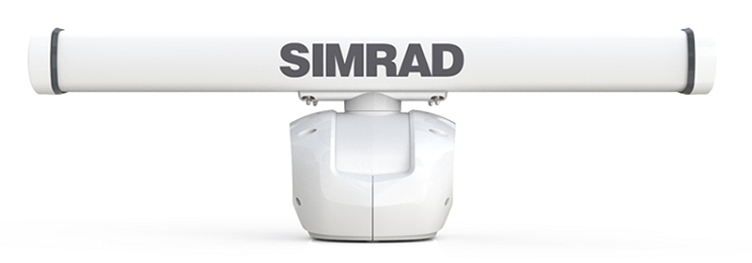

| HALO™-4 | 64NM | 4 foot |

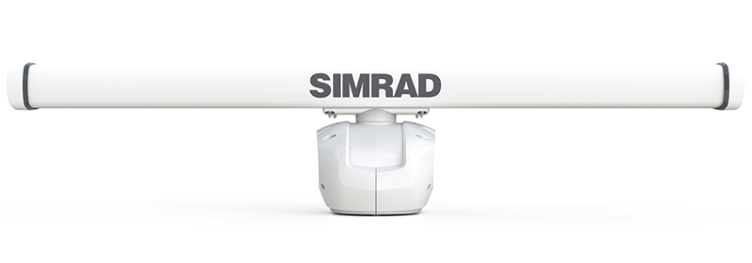

| HALO™-6 | 72NM | 6 foot |
Brochures/Product Link
HALO-3 Pulse Compression Radar
HALO-4 Pulse Compression Radar
HALO-6 Pulse Compression Radar
