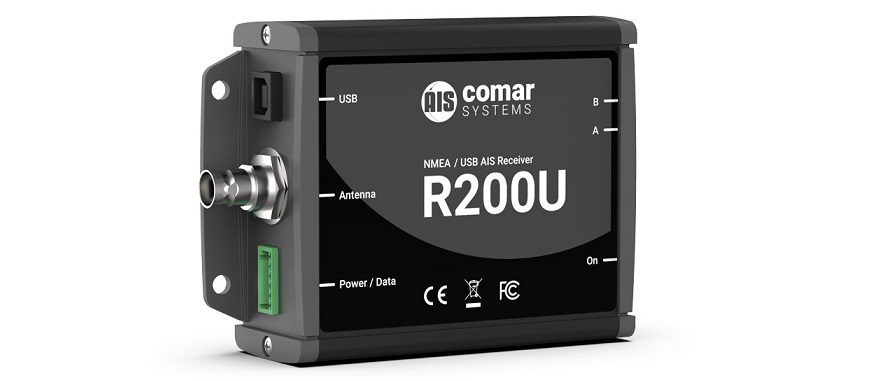

The R200U is a high performance, dual channel AIS receiver, with outputs for both NMEA 0183 and USB. The R200U reads and decodes all AIS messages that are specified and transmitted by AIS Class A and Class B transponders, AIS SARTs and Aids to Navigation. The AIS targets together with all the static and dynamic information received can be displayed on any AIS compatible Chart Plotter or PC navigation program.
Features
- Dual parallel receivers
- Power & channel LEDs
- USB 2.0 compliant
- Low power consumption
- Compact design
- USB powered
- 12/24 volts dc powered
- NMEA 0183 VDM output
- Built in NMEA multiplexer
Specifications
- Weight : 400g
- Dimensions : L 120 mm W 86 mm D 37 mm
- Power Supply : 9-30 V dc or USB
- Current : 100mA @ 12 V dc
- Input : NMEA 0183 at 4800
- Output : NMEA 0183 at 38,400 or USB
- Construction : Aluminium, ABS End Caps
- Finish : Black Fine Texture Paint, Grey ABS
