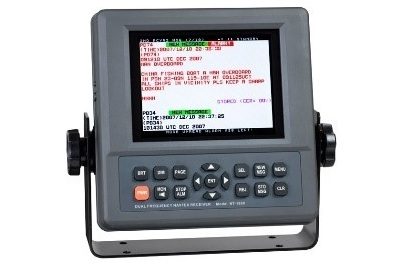

NAVTEX Receiver is a system for the broadcast and automatic reception of maritime safety information by means of a narrow-band direct-printing telegraphy. It provides shipping with navigational and meteorological warnings and urgent information through automatic printouts from a dedicated receiver.
Features
- High-end GMDSS model for SOLAS vessels,fully compliant with SOLAS Convention 74,IMO resolution MSC.148(77), IEC 61097-6 Ed.2,and other international NAVTEX regulations
- 5.7-inch daylight-viewing color TFT LCD display,backlit with white LED lamps for extra long service life
- Simultaneous reception of 518 and 490 kHz or 518 and 4209.5 kHz with single-touch switching of displayed messages
- Externally acknowledgeable SAR, navigational, meteorological alarms by IEC-defined software command
- Automatically displays SAR messages in red,clearly distinguishing them from other message types while audibly alerting the user even for messages received on a second frequency.
- Selectable background colors and text font sizes
- Single preamplified whip antenna (NA-2000) with built-in passband filter for each frequency
Specifications
- Frequencies : 518,490 and 4209.5 kHz
- Storage : 200 messages (average 500 characters/message) plus 50 protected messages against automatic erasure
- Display : 5.7″ TFT color LCD,LED-backlit 20 lines/screen with 40 characters/line
- Antenna :1.2m preamplified fiberglass whip,8V/10 mA fed from receiver cabinet via coax cable
- Power Requirements : 24 VDC (safely operates over 11-40V range), approx. 11W
- Weight : Approx. 2.4 kg with bracket attached
