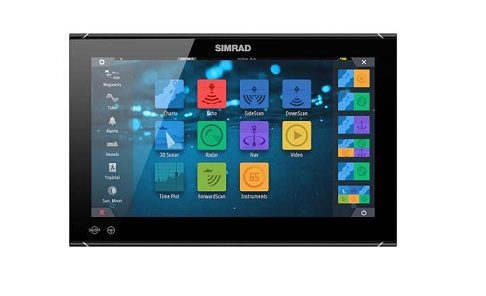

Build your ultimate navigation system around NSO evo3S. The new iMX 8 high-performance processor, ensures rapid responses to your every command, while the Full HD display gives you stunning clarity. Connect with GPS, radar, sonar, keypad controllers and other accessories to create your ideal vessel-wide system.
Features
- iMX 8 Integrated six-core processor for superior performance
- Seamless touchscreen control of your entire connected SIMRAD® system
- Low-profile glass helm styling
- Extended visibility with six-panel split screen option
- Connect with smartphones, tablets, and internet hotspots
Specifications
- Storage Temperature Range : “-20°C to +60°C (4°F to 140°F)
- SD Card Storage : 1 Micro SD slot, or use USB Dashmount Card reader MI10 with 2x Micro SD slots. max. 32GB each. >32 GB format to NTFS
- NMEA 2000 Connectivity : 1 x NMEA 2000 Micro-C port, 1 LEN
- Supply Voltage : 10 – 32 V DC
- Screen Brightness : 1200 nits
- Operating Temperature Range : -15°C to +55°C (5° F to 131° F)
- Internal Storage : 16 GB
- Display Resolution : 1920×1080
- Warranty Period : 2 Years
Series
Display |
Weight |
Power Consumption max |
|
NSO evo3S 16″ |
Full HD 16-inch |
3.9 kg (8.6 lbs.) |
40 W +- 4 W |
NSO evo3S 19″ |
Full HD 19-inch |
4.8 kg (10.5 lbs.) |
50 W +- 4 W |
NSO evo3S 24″ |
Full HD 24-inch |
7.8 kg (17.2 lbs.) |
80 W +- 4 W |
