The all-new HOOK Reveal makes fishing easier, delivering powerful performance with proven fish-finding tools including, Autotuning Sonar, SideScan and DownScan Imaging™ and now FishReveal™, which makes fish easier to see by combining the benefits of Lowrance CHIRP sonar and DownScan Imaging™ on one screen. Whether you’re fishing a local spot or unfamiliar water, find the best fishing areas with preloaded US Inland mapping or map uncharted water – in real time – with Genesis Live.
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 94
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 95
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 96
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 97
HOOK Reveal TripleShot Series
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/inc/shortcodes/share_follow.php on line 23
Features
- FishReveal™
- Genesis Live Real-Time Mapping
- Autotuning sonar
- Double the sonar coverage of other fishfinders
- Tripleshot™ transducer with High CHIRP, SideScan and DownScan Imaging™
- Preloaded C-MAP US Inland mapping
- SolarMAX™ Display
- New fish-finding color palettes
- Optimized keypad with one-touch access to key features
- Mapping options include C-MAP, C-MAP Genesis, Navionics® and more
- microSD card slot
- Easy front-dash or gimbal-bracket mount
Specifications
- Screen Brightness : >1000 NITS
- GPS : 1 Hz GPSGLONASSWAASEGNOSMSAS
- Warranty Period1 Year + 4 additional years ofupgrade optionsTotaling 5 years
- Compass Safe : 12″ (300mm)
- Supply Voltage : 12v DC (10.8-17VDC)
- Waypoints, Routes, Tracks : 3000 Waypoints100 Routes100 Trails
- Time to First Fix : 30s
- Recommended Fuse Rating : 5A
- Display Resolution800 x 480
Series
Weight |
Power Consumption max |
Dimensions W x H x D |
Map Options |
Transducer Options |
|

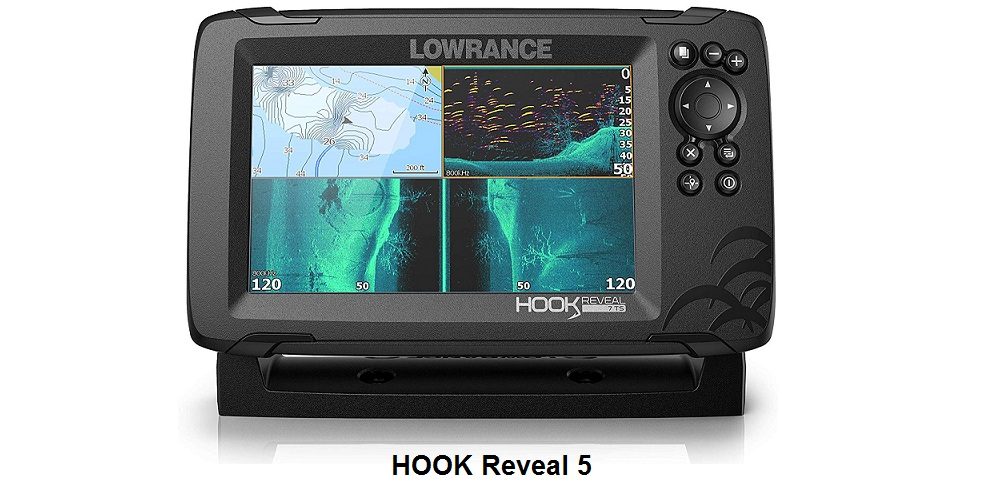

HOOK Reveal 5 |
0.90 lb. (0.41 kg) |
0.9A @ 13VDC |
7.31″ (185.7 mm) x 4.32″ (109.8 mm) x 4.53″ (115.0 mm) |
– 4,000 US Lake Map– GPS Only |
-Ice Machine-SplitShot-TripleShot |

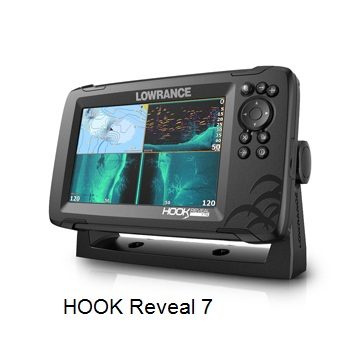

HOOK Reveal 7 |
1.25 lb (0.57 kg) |
1.25A @ 13VDC |
9.31″ (236.4 mm) x 6.46″ (164.2 mm) x 4.42″ (112.3 mm) |
– 4,000 US Lake Map– GPS Only |
-Ice Machine-SplitShot-TripleShot |

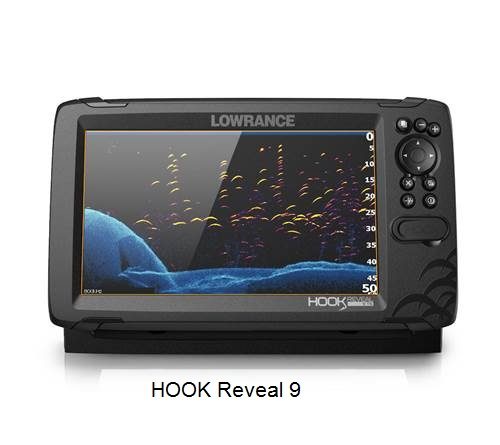

HOOK Reveal 9 |
1.90 lb (0.86 kg) |
1.50A @ 13VDC |
10.92″ (277.3 mm) x 6.90 (175.2 mm) x 4.42″ (112.3 mm) |
4,000 US Lake Map |
-Ice Machine-SplitShot-TripleShot |
Brochures/Product Link
HOOK Reveal TripleShot Series
