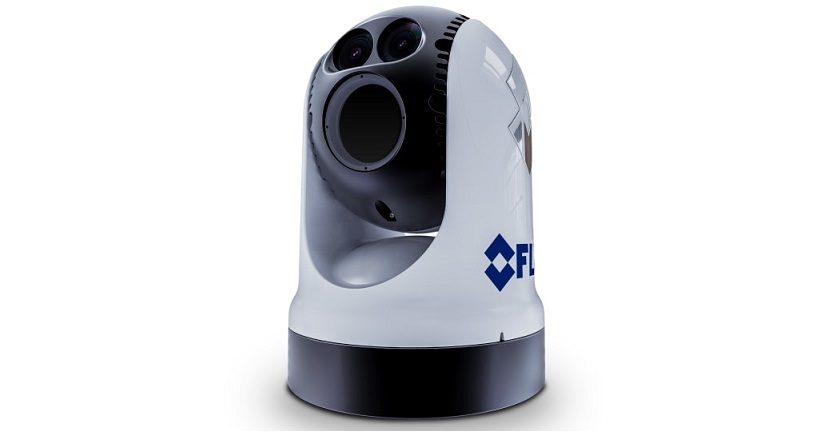

The gyro-stabilized FLIR M500 cooled thermal camera is our most technologically-advanced M-Series pan and tilt camera ever. Designed around a cryogenically-cooled 640 x 512 pixel Mid Wave Infrared (MWIR) thermal sensor, the FLIR M500 excels at both short and ultra-long range target detection and identification. It features a 14X continuous optical thermal zoom, a color HD camera with 30x zoom, an LED spot-beam, video tracking and radar integration.
Features
- Cooled thermal core technology and continuous optical zoom enables early detection of vessels, navigation aids, and key landmarks.
- Automatic video tracking keeps the M500 locked onto visual targets, while radar integration directs it to track select radar targets.
- The 14× optical thermal zoom can detect the heat signature of vessels up to ~8.3 nm / 15.4 km away.
Specifications
- Pan/Tilt Range : 360° pan and +/-90° tilt capability
- Size : 10.75″ (273 mm) dia. x 15.65″ (397.5 mm) ht
- Weight : 45 lb (20.4 kg)
- Resolution : 1920 x 1080
- Field of View Limits – Color : Optical 63.7° x 35.8° WFOV to 2.3° x 1.29° NFOV
- Operating Temperature : -25°C to +55°C
- Power Consumption : 250 W (max w/heaters)
- Power Requirements : 12 VDC to 24 VDC (-10%+30% per IEC 60945)
Brochure/Product Link
FLIR M500
