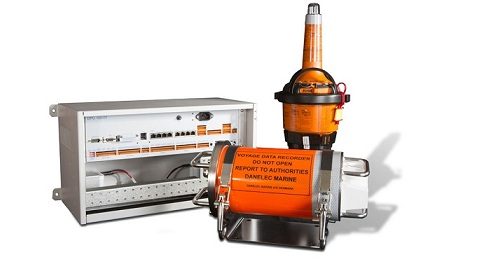

Designed specifically for maritime application down to the last component, the DM100 S-VDR G2 offers high quality and reliability in a compact and lightweight, easy-to-install solution. The new DM100 S-VDR G2 brings features that were up till now only available to VDRs. Any new feature developed for the DM100 VDR is automatically compatible with the DM100 S-VDR G2, making it a future proof solution.
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 94
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 95
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 96
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 97
Features
- • Data shall be recorded in removable memory of the S-VDR for a minimum of 12 hours .
- Data shall be recorded in a fixed capsule or a float-free capsule for a minimum of 12 hours .
- Functionality of saving the recorded data following an incident shall be provided, which
can be initiated by the crew without any interruption to the recording process - Data from the GPS, speed log, gyro compass, VHF and bridge audio shall be recorded
- Radar image and/or data from the AIS shall be recorded
- Data from other sensors shall be recorded, if output is available in IEC 61162 format
Specifications
Data Acquisition Unit :
- 30 days of recording capacity on built-in SSD
- 10 inputs for bridge audio and VHF
- 12 inputs for serial data (IEC 61162-1, IEC 61162-2 and Modbus)
- 7 inputs for IEC 61162-450 network data (1000BASE-T)
- AC power (110-230V, 50-60Hz)
- Built-in UPS with NiMh batteries
Protective Fixed Capsule :
- 48 hours of recording capacity
- 90 days acoustic underwater beacon
- Supplied with 50 meters cable
- Ethernet (100BASE-TX) interface
- Powered from Data Acquisition Unit (PoE)
Float-free Capsule :
- 48 hours of recording capacity
- Supplied with 50 meters cable
- Ethernet (100BASE-TX) interface
- Powered from Data Acquisition Unit (PoE)
- COMSAR/ COSPASS approved EPIRB
Bridge Control Panel :
- Built-in graphical color TFT LCD display
- Ethernet (100BASE-TX) interface
- Powered from Data Acquisition Unit (PoE)
Bridge Microphones :
- Built-in buzzer for self-test
- Built-in amplifier and filters
- IP66 water resistant (outdoor only)
- Powered from Data Acquisition Unit
