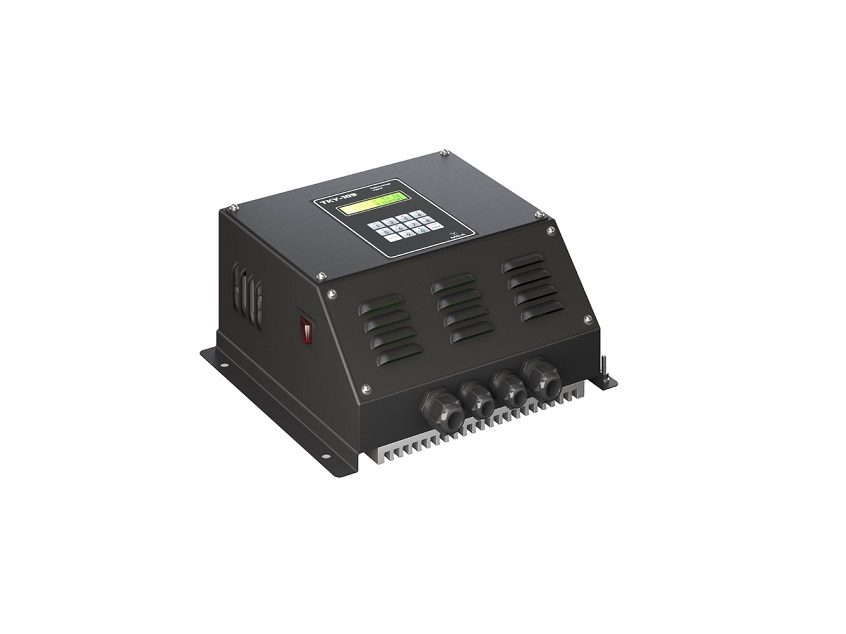

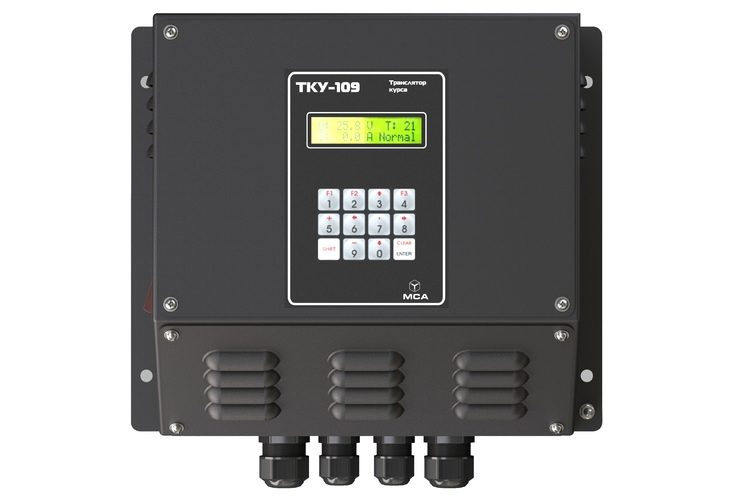

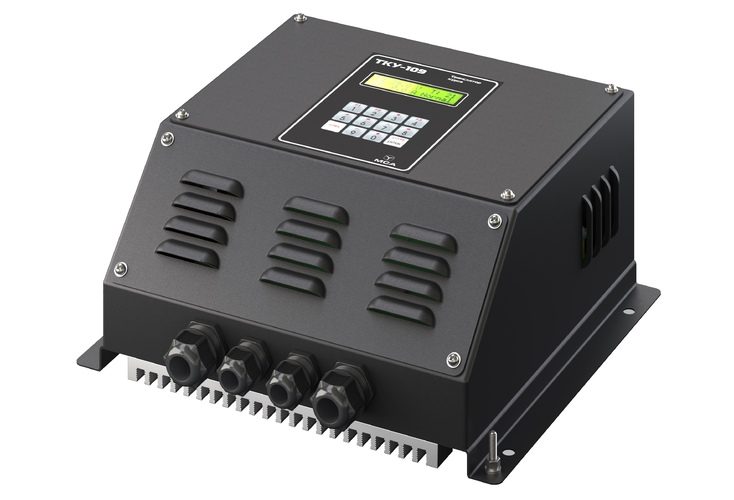

Digital-To-Analog Converter / Heading Converter

The DAC-109 is designed to convert digital course data received in the NMEA sentences into the synchrosignals required to control analog repeaters and other selsyn-based devices.
The unit may be used as a digital repeater to display the current course data.

Specifications

Dimensions : 420.8x266x86.5 mm
IP rating : IP 22
Storage temperature : -55…+70 °С
Operating temperature : -20…+55 °С
Weight : 6 kg
Power supply voltage : 18…32 VDC
Max total power consumption of connected selsyns : 250 W
Frequency of output AC voltage : 50 Hz / 500 Hz
Supported interfaces : RS-232, RS-422/485
Types of connected analogue repeaters : Synchro/Step
