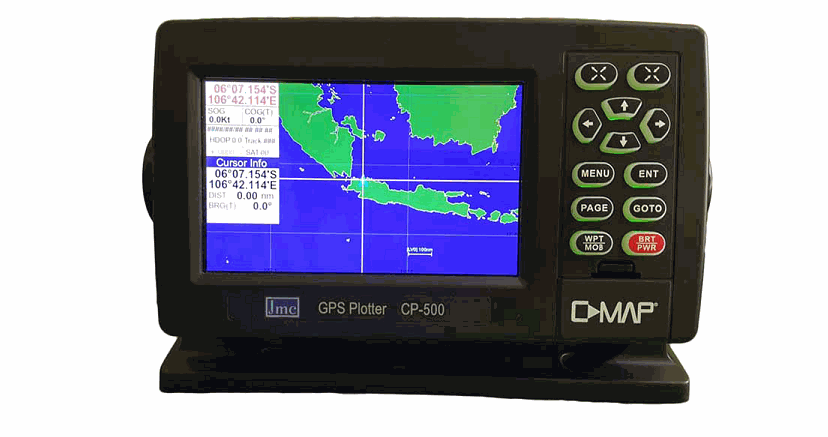

CP-500

Features

• Display-viewing 5.0 inch color WVGA LCD Screen 800 x 480 dots with white backlight LED.
• Full screen display of Advanced Chart View, Standard Chart View, Simple Chart View, Satellite
  Data, GNSS Data, 3D Navigation, Compass, AIS pages.
• C-MAP Cartography is available, C-MAP SD Card, Map type: NT+ or MAX
• AIS information (MMSI or Call-sign/Name/heading/speed) from external AIS Transponder (JMC
  Model AIT-202A) can be displayed on AIS target display screen with audible/visual alarm against
  other vessels approaching user-specified alarm zone.
• User-definable alphanumeric name tags may be attached to waypoints.
• Range ring tells distances to points of interest, graphically and at a glance.
• Data transfer function allows user data (tracks, waypoints, routes and boundaries) to be memorized to SD Card, and supports Plotter-to-Plotter data cloning between JMC brand models.
• Audible and visual alarms include for Waypoint anchor watch, arrival, boundary, cross-track error,
  GPS fix and HDOP.
• Multi-languages are available, English, Simplified Chinese, Traditional Chinese, Vietnamese,
  Malay, Turkish, Thai, Greek, Indonesian and Japanese.

Specifications

• Screen : 5 inch color TFT-LCD, WVGA (800×480 dots) with White LED backlighting
• GPS Receiver : 12 ttracking / 24 acquisition-channels GPS/GLONASS/WASS/EGNOS/MSAS/GAGAN,QZSS ready
• Map Coverage : X-Map or C-MAP Cartography
• Discrete Waypoints : 0.05 – 100 n.m.
• Route Waypoints : total 10,000 points (8 character, 8 color)
• Track-line Storage : 3,200 points (400 x 8 color)
• Power Requirements : 11 to 36 VDC, approx. 5W
• Cabinet Dimensions & Weight : 205(H) x 133(H) x 78(D) mm/approx. 600g
• Operation temperature : -15~+55°C / +40°C, 93% relative humidity
