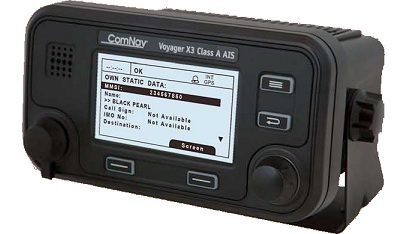

CLASS A AIS TRANSCEIVER VOYAGER X3

Voyager X3 Class A AIS Transceiver Automatic Identification System . Safety & Security for Deep Sea and Inland Waterways .

Features

Compact single box design
Approval: FCC and USCG standard in USA, Wheel Mark/MED,IEC certified in Canada
Advanced technological design for enhanced performance & reliability
Display graphically AIS data target overlay on standard radars and multifunction chart displays
Wireless exchange — Navigation status between vessels and shore traffic monitoring centers
Monitor vessels of Class A and Class B over standard VHF data transmissions
Port traffic management — using Class A and Class B data to identify and control vessel movements
Transmit safety related messages reducing search and rescue times
Rotary encoder for quick selection and data entry using two soft keys
Easily upgradeable through PC software via RS232 — 9 way D type connector
Built in 16 Channel GPS receiver with antenna
High contrast monochrome LCD for clear presentation of data
Dual mode Class A/Inland AIS configurable via built-in menu
International certification to IEC61993-2 and inland waterways standards
Fully compatible with ComNav Vector G2/G2B GPS Compasses
1 Year warranty
GPS display of position, COG and SOG
Auto configuration for safety related message
Data display for MMSI, vessel name, call sign, vessel type, etc.

Operating Voltage : 12 to 24 VDC
Power Consumption : 10 watts average, 4.75A peak at 12VDC NMEA0183 Interface : 38.4k baud bi-directiona
Transmitter : Single
Frequency Range : 156.025MHz – 162.025MHz
Channel Bandwidth : 25KHz
Power Output : 41dBm +/- 1.5dB
Modulation : 25KHz GMSK / 25KHz AFSK Data Rate: 9600 bps GMSK & 1200 bps FSK
